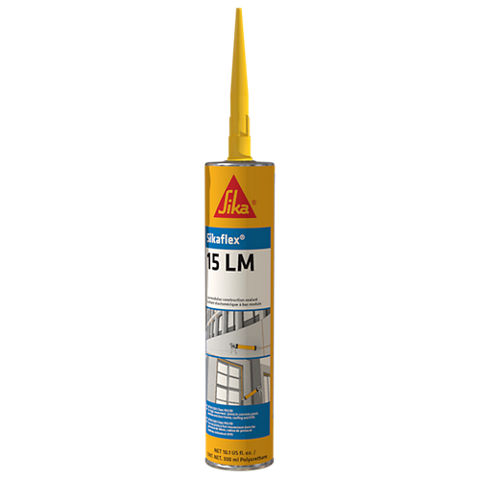

Sikaflex®-15 LM

Sikaflex®-15 LM

High-performance, low-modulus elastomeric sealant

Sikaflex®-15 LM is a low-modulus, high-performance, 1-component, polyurethane-based, non-sag elastomeric
sealant.

  • Low modulus of elasticity
  • Easy and ready to use
  • Eliminates time, effort, waste, and equipment clean-up
  • High elasticity – cures to a tough, durable, flexible consistency with exceptional cut and tear resistance
  • Stress relaxation
  • Very good adhesion – bonds to most construction materials without primer
  • Suitable for use between similar as well as dissimilar materials.
  • Very good resistance to weathering
  • Proven in tough climates around the world
  • Urethane-based, suggested by EPA for radon reduction
  • Can be painted
  • Jet fuel resistant
  • Proven in tough climates around the world
  • Non-leaching
  • Movement capability of +100 / -50 % (ASTM C719)
Product Data Sheet Safety Data Sheet Show all documents

Usage

Typical applications include:
  • Joints in concrete panel and wall systems, around window and door frames, reglets, flashing, common roofing detail applications, etc.
  • Moving joints in vertical applications.
  • Exterior Insulation Finish Systems (EIFS)
  • High-rise and facade applications where high movement capability is required.
  • 2- and 3-hour UL Fire Rated Joint System Nos. FF-S-0007, FF-S-0037, FW-S-0015, FW-S-0018, HW-S-0076, HW-S-0095, WW-S-0011 and WW-S-0060


Advantages

  • Low modulus of elasticity
  • Easy and ready to use
  • Eliminates time, effort, waste, and equipment clean-up
  • High elasticity – cures to a tough, durable, flexible consistency with exceptional cut and tear resistance
  • Stress relaxation
  • Very good adhesion – bonds to most construction materials without primer
  • Suitable for use between similar as well as dissimilar materials.
  • Very good resistance to weathering
  • Proven in tough climates around the world
  • Urethane-based, suggested by EPA for radon reduction
  • Can be painted
  • Jet fuel resistant
  • Proven in tough climates around the world
  • Non-leaching
  • Movement capability of +100 / -50 % (ASTM C719)

Packaging

300 mL (10.1 fl. oz) cartridge - 24/case
590 mL (20 fl. oz) sausage - 20/case

Colour

White, Aluminum Grey, Limestone, Black, Dark Bronze, Capitol Tan,

Off-White. Special colours on request (min. volume)

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

 Contributes towards satisfying LEED®  – EQ/MR Credit: Low-Emitting Materials

APPROVALS / CERTIFICATES

  • Meets Federal Specification TT-S-00230C, Type II, Class A; ASTM C-920, Type S, Grade NS, Class 100/50, use T, NT, G, A, O, M
  • Meets Federal Specification for silicones - TT-S-001543 A, Type non-sag
  • Tested in accordance with ASTM C1382 for use in EIFS systems

Product Information

Shelf Life

Cartridge: 15 months in original, unopened packaging

Sausage: 18 months in original, unopened packaging

Storage Conditions

Store in dry conditions, protected from direct sunlight and at temperatures between 4 °C and 35 °C (40 °F and 95 °F). Condition material to 18 °C – 24 °C (65 °F – 75 °F) before use.
Technical Information

Shore A Hardness

~25 (after 21 days)

(ASTM C661)

~25 (after 28 days)(ISO 868)

Elastic Recovery

>80 %

Movement Capability

+100 / -50 %

(ASTM C719)

Chemical Resistance

Good resistance to water, diluted acids, and diluted alkalines. Not normally designed for fully immersed conditions. Contact Sika Canada Technical Service for specific data.

Resistance to Weathering

0 (no cracks)

(ASTM C793)

Service Temperature

−40 °C to 77 °C (−40 °F / +170 °F)

Adhesion in Peel

Substrate

Peel Strength

Adhesion loss

Aluminium

11.4 kg (25 lb)

0 %

Concrete13.6 kg (30 lb)0 %

Glass

11.4 kg (25 lb)

0 %

Tensile Stress at Specified Elongation

~345 kPa (50 psi) at 100 % elongation

(ASTM D412)

Application

Application Information

Ambient Air Temperature

Minimum: 4 °C (40 °F) / Maximum: 38 °C (100 °F)



Note: Sealants should be installed when substrates are at mid-range of their anticipated movement. Temperature must be at least 3 °C (5 °F) above the dew point

Substrate Temperature

Minimum: 4 °C (40 °F) / Maximum: 38 °C (100 °F)



Note: Sealants should be installed when substrates are at mid-range of their anticipated movement.

Curing Time

  • Tack-free time: 2 to 6 hours (TT-S-00230C)
  • Tack-free (to touch): 3 hours
  • Final cure: 7 to 10 days
Consumption

Consumption


300 mL (10.1 oz) Cartridge: ~Yield in Linear Feet

Width

Depth

Depth

Depth

6 mm (¼ in)

9.5 mm (3/8 in)

13 mm (½ in)
6 mm (¼ in)24.3
9.5 mm (3/8 in)16.210.8
13 mm (½ in)12.18.16.1
19 mm (¾ in)8.15.44.0
25 mm (1 in)3.0
30 mm (1¼ in)2.4
38 mm (1½ in)2.


590 mL (20 oz) Cartridge: ~Yield in Linear Feet

Width

Depth

Depth

Depth

6 mm (¼ in)9.5 mm (3/8 in)13 mm (½ in)
6 mm (¼ in)

48.1

9.5 mm (3/8 in)

32.1

21.4

13 mm (½ in)24.116.012.0
19 mm (¾ in)16.010.78.0
25 mm (1 in)6.0
30 mm (1¼ in)4.8
38 mm (1½ in)4.0
Application steps

SUBSTRATE QUALITY

Joint walls must be structurally sound, clean, dry, frost-free, and free of oil and grease.

SUBSTRATE PREPARATION

Clean all surfaces. Curing compound residues and any other foreign matters must be thoroughly removed. A roughened surface will also enhance bond. Mechanical prepareation is best. Install bond breaker tape or backer rod to prevent bond at base of joint.

CLEAN UP

Uncured material can be removed from equipment and tools using Sika Cleaning Wipes or a solvent, such as xylene. Strictly follow solvent manufacturer’s warnings and instructions for use. Cured material can only be removed manually or mechanically.
