Sika® Fibermesh®-150F

Sika® Fibermesh®-150F

MICRO-SYNTHETIC MONOFILAMENT FIBER FOR RESISTANCE TO FIRE SPALLING

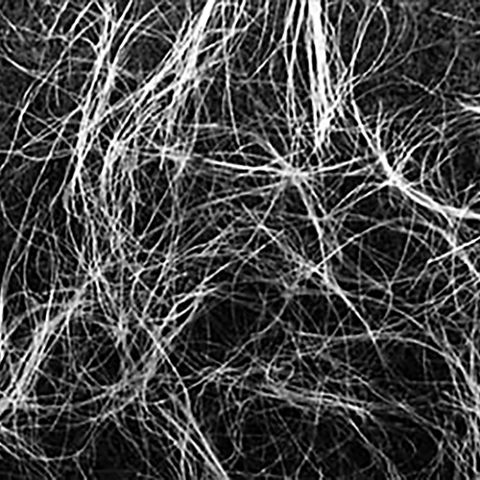

Sika® Fibermesh®-150F micro reinforcement system for concrete - 100 percent virgin homopolymer polypropylene multifilament (monofilament) fibers.  Specifically engineered and manufactured in an ISO 9001 certified manufacturing facility.

  • Reduces fire explosive spalling
  • Inhibits and controls the formation of intrinsic cracking in concrete
  • Increases cohesion and reduces segregation
  • Reduces settlement and bleeding
  • Provides durability
Product Data Sheet Show all documents

Usage

Applicable to all types of concrete which demonstrate a need for resistance to fire spalling,
intrinsic cracking, and improved water tightness
  • Tunnel
  • High rise buildings
  • Concrete framed structures
  • Bridges / underpasses
  • Multi story garages
  • Schools
  • Oil Platforms
  • Precast
  • Shotcrete


Advantages

  • Reduces fire explosive spalling
  • Inhibits and controls the formation of intrinsic cracking in concrete
  • Increases cohesion and reduces segregation
  • Reduces settlement and bleeding
  • Provides durability

Packaging

Sika® Fibermesh®-150F fibers are available in 6 mm and 12 mm lengths.  The 6mm length is packaged in 12 x 1kg cartons, and the 12 mm length is packaged in 15 x 1 kg cartons.

Colour

  • Fiber Type:  Monofilament micro synthetic fiber
  • Diameter: 0.03 mm or 6 denier ( 0.0012 inches)
  • Aspect Raio: 200 or 390

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Complies with European Standard EN 14889-2:2006 Fibres for Concrete Part 2: Class 1b and carries CE marking
  • UL Classifi ed: Fibermesh 150. For use n Floor-Ceiling D700, D800, D900, G229, G243, G256, G514 Series Designs.
  • Complies with ASTM C 1116/C 1116M,Type III fiber reinforced concrete and therefore ASTM D7508
Product Information

Shelf Life

When stored in dry conditions shelf life is 5 years

Storage Conditions

Sika® Fibermesh®-150F  should be stored in a dry warehouse.  Protect product from the rain.

Density

0.91

Melting Point

324 oF (162 oC)
Technical Information

Resistance to Alkalinity

Excellent

Application

Application Information

Mixing

Sika® Fibermesh®-150F in degradable bags can be added directly to the concrete mixing system after the batching of the other ingredients and mixed for 4 to 5 minutes or 70 revolutions.

Application

The addition of Sika® Fibermesh®-150F at the recommended dosage rates does not require any mix design or application changes.  The fiber concrete can be mixed, sprayed or placed using conventional equipment.

Tooling & Finishing

Sika® Fibermesh®-150F can be finished by most finishing techiques.
Consumption

Recommended Dosage

The dosage of the Sika® Fibermesh®-150F will vary according to the Fire Testing Requiments.  Standard recommend dosage of Sika® Fibermesh®-150F according to the EN standard is 2 kg/m3 (s 3.4 lb/yd3) of concrete.
