Factors Influencing Final Colour, Appearance, and Solar Reflective Properties

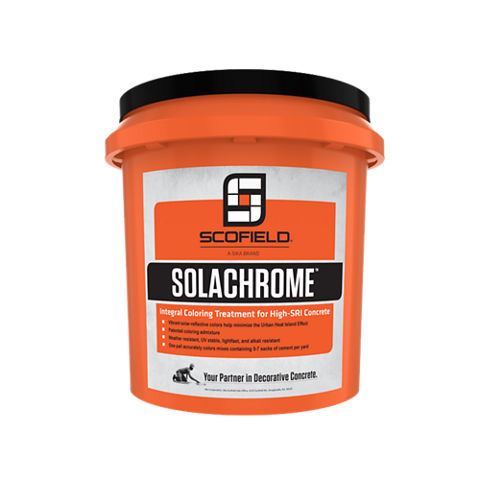

Colours represented on the SOLACHROME™ Integral Coloring Treatment for High-SRI Concrete colour chart SICT-CC depict samples of smooth finished concrete made with medium grey or white cement and cured with SCOFIELD® Cureseal-W™ Concrete Curing Compound and Sealer. The final colour, appearance and solar reflective values, (SR), obtained on the jobsite will be influenced by concrete composition, surface finishing technique, and curing compound/sealer selection.
Concrete composition variations that can impact colour and SR, (solar reflectance), include cement type and colour, aggregate selection, and the use of pozzolans such as slag or fly ash. Differences in sealer or curing compound type, such as water or solvent based, or if no sealer is used, can also influence final appearance and SR.
Finishing techniques will influence final concrete appearance. Different tools such as wood floats, magnesium trowels, hard steel trowels, brooms, and edging tools, will each influence colour, surface texture, sealer penetration, and final cured concrete appearance differently. Do not change tool types once work has begun.
Changes in water content and water-to-cement ratio, both in the mix and on the concrete surface during finishing, can influence the final surface colour. Mix designs that develop excessive bleed water can float non-uniform cement/pigment ratios, and cause uneven or weak colouring. Once mix designs are established, do not add water to alter concrete plastic properties.
Do not add water to loosen partially cured loads. Do not use “watering” sprinklers as coloured concrete cures, or use wet brooms and tools while finishing. Any of these will likely result in inconsistent concrete colour.
Placement and Finishing Tips
As freshly placed concrete cures, its colour will vary with differences in surface moisture. Concrete curing in shaded areas or in the center of large slabs will surface dry slower than those exposed to sunlight or closer to form edges. This can cause colour variations that will often fade with time. Avoid high salt aggregates that can cause efflorescence that can make colour irregular. These visual differences can be long lasting, and raise questions about the quality of the concrete placement. Use SCOFIELD® Cureseal-W™ Concrete Curing Compound and Sealer to avoid these problems and deliver jobs that are uniform in colour and appearance. Always evaluate composition and finishing techniques as described below.
Jobsite Test Sections
Prior to large scale production, the concrete or cementitious mix design for each colour to be produced must be made. Conduct small scale testing to demonstrate concrete from the mix design meets all slump, flow, air content, compressive strength, and any other required concrete specifications.
Prior to general jobsite use, representative Jobsite Test Section(s) or “Mock-Ups” must be produced and approved for each individual concrete colour mix design, surface finish/texture, and for each curing compound/sealer combination that will be created.
Use Jobsite Test Sections to verify entire system suitability including frame/mold and foundation preparation methods, surface concrete specification compliance, finishing techniques, safety procedures, and achieved performance of the fresh and fully cured concrete. When applicable, test completed systems for wet and dry slip resistance. Evaluate polishing or coating application techniques, final colour, and visual appearance. Do not proceed with products, techniques, or finishing systems that do not meet required specifications or meet with site owner approval.
Selected Jobsite Test Sections should be in close proximity to the larger job area, and made from the same concrete mix design that will be used on the larger project. Test sections should be sized to be representative of the finished project, and be produced by the same workers who will perform the project installation.
