Sikament®-100 SC

ANTI-WASHOUT ADMIXTURE

Sikament®-100 SC is an anti-washout admixture specially designed for the underwater placement of concrete and grout. The admxiture is formulated with a unique bipolymer that Increases mix cohesiveness and imparts a variable viscosity characteristic to concrete and grout. Sikament®-100 SC produces concrete that becomes fluid and flowable when sheared or mechanically agitated such as during pumping operations. This characteristic enables concrete to flow easily through and into confined spaces. When at rest, the concrete will revert to a dense, high viscous, consistency. This cohesive cement paste matrix promotes high compressive and flexural strength development.

  • Reduces or eliminates the need to dewater underwater construction sites before concrete construction or concrete placement can take place: Concrete can be placed by pump or tremie directly into areas covered by water
  • Concrete matrix integrity is maintained during high slump placements and washout is reduced from the surface during curing
  • Reduce or eliminate dewatering costs associated with underwater construction
  • Concrete is easy to pump and flows readily into available spaces
  • Segregation and dilution are reduced, in-place compressive and bond strengths are significantly increased
  • Laitance on concrete surface caused by cement paste washout during curing is reduced or eliminated
  • Active slump life of the concrete is doubled without extended delays in setting time
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Ideal for underwater placement of concrete and grout in fresh and saltwater environments.
  • Improves underwater “stacking” characteristics when concrete is placed by tremie operations.
  • The ability of concrete mixtures to penetrate and consolidate foundation rock layers is dramatically improved, for example, as required in jetty sealing operations.
  • May also be used as a water reducing and anti-washout additive for placement into bentonite slurries or similar materials.

Advantages

  • Reduces or eliminates the need to dewater underwater construction sites before concrete construction or concrete placement can take place: Concrete can be placed by pump or tremie directly into areas covered by water
  • Concrete matrix integrity is maintained during high slump placements and washout is reduced from the surface during curing
  • Reduce or eliminate dewatering costs associated with underwater construction
  • Concrete is easy to pump and flows readily into available spaces
  • Segregation and dilution are reduced, in-place compressive and bond strengths are significantly increased
  • Laitance on concrete surface caused by cement paste washout during curing is reduced or eliminated
  • Active slump life of the concrete is doubled without extended delays in setting time

Packaging

20 L (5.2 US gal.) pail
205 L (54 US gal.) drum

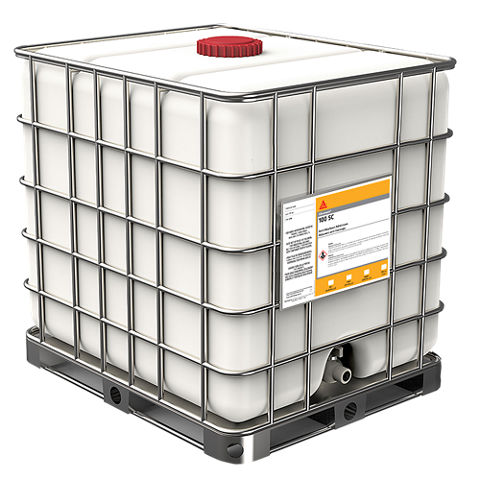

1040 L (275 US gal.) IBC
Bulk delivery

Colour

Liquid / Brown

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Sikament®-100 SC meets the requirements of CRD-C661-06
  • Approved by the Ministère des Transports du Québec (MTQ)
Product Information

Shelf Life

1 year when stored in dry warehouse conditions at temperatures between 10 °C and 27 °C (50 °F and 80 °F).

Storage Conditions

Store at temperatures above 5 °C (40 °F). If frozen, thaw and agitate thoroughly to return to normal state. Protect from direct sunlight.

Specific Gravity

Approx. 1.2

Application

Application Information

Mixing

Site Preparation

The area should be clean and free of oil and grease, curing compounds and foreign objects. Minimize the drop of unprotected concrete through water or slurries.

Mixing

Sikament®-100 SC should be added to the fresh concrete after all the other mix ingredients have been blended together. Addition of the Sikament®-100 SC directly into the concrete too early in the mixing may promote clumping of the mix materials. For best results, the concrete should be prepared in a concrete mixer that can thoroughly shear the materials and blend all of the components. Turbine mixers in ready-mix plants often perform better than dry batched transit mixers. Insufficient mixing or use of less than recommended quantities of Sikament®-100 SC may result in a concrete mix that is more likely to bleed or separate.

Placing

When placing concrete under water or through slurries, minimize its free drop through the placement media (e.g. water or slurry) and attempt to place it continuously and without interruption. Keep the discharge point of the placement device immersed in concrete whenever possible. Reduce the amount of water used or increase the dosage of Sikament®-100 SC if the concrete or grout appears to separate or bleed. The action of pumping the concrete under pressure into a congested area should indirectly shear the concrete and make it flow readily and easily into the available spaces. If the concrete does not flow readily in these conditions confirm that the concrete is not approaching initial set and that the mix has been formulated properly.
Consumption

Recommended Dosage

Sikament®-100 SC is formulated for use at a rate of approximately 2.58 L/m3 (630 mL/100 kg)). This proportion is based on a nominal 300 kg of cement in the mix with a 0.40 water/cement ratio. The amount of Sikament®-100 SC must be proportionately increased when water content is increased. Sikament®-100 SC if used at higher dosages may delay the initial set of concrete.


Additional high range water reducing admixtures may be required to obtain desired workability of the concrete. Consult your Sika Canada Technical Sales Representative for further information.
