Sika® ViscoCrete®-2110
Sika® ViscoCrete®-2110 is a high range water reducer and superplasticizer utilizing Sika’s ViscoCrete® polycarboxylate polymer technology.
- Higher ultimate strengths allow for greater engineering design flexibility and structural economy
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
- Extended slump life
- Increased compressive strength when compared to reference concrete with same w/c ratio
- High early compressive strengths for earlier removal of forms and structural use of concrete
- High ultimate strengths allow for greater engineering design flexibility and structural economies
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
- Approved by the Ontario Ministry of Transportation
- Approved by the Ministère des Transports du Québec (MTQ)
Usage
- Used in both ready mix and precast applications, as a plant-added high range water reducer to provide excellent plasticity while maintaining slump for up to 90 minutes
- Controlled set times make it ideal for horizontal and vertical applications
- Ideal for production of Self-Consolidating Concrete (SCC)
Advantages
Sika® ViscoCrete®-2110 can be used for all levels of water reduction in various types of concrete ranging from dry cast applications, conventional concrete to SCC (Self Consolidating Concrete). Sika® ViscoCrete®-2110 will deliver water reduction up to 45 %. The special formulation of Sika® ViscoCrete®-2110 increases compressive strength of concrete and helps maintain the plasticity of the concrete over prolonged period of time. Sika® ViscoCrete®-2110 extends concrete workability time during warmer months when slump loss and fast stiffening of the fresh concrete can be a concern. The superplasticizing action of Sika® ViscoCrete®-2110 provides high slump / flowing concrete that be placed with minimal or no vibration even at very low water cementitious ratios, as low as 0.25. Water Reduction: Sika® ViscoCrete®-2110 can be dosed in small amounts to obtain water reduction from 10–15 %, and will achieve water reduction up to 45 % at high dosage rates. Sika® ViscoCrete®-2110 is suitable for all levels of water reduction. Plasticizing effect: The superplasticizing action of Sika® ViscoCrete®-2110 provides high slump, flowing concrete that maintains excellent workability and may be placed with minimal vibration even at very low water cementitious ratio’s as low as 0.25. Sika® ViscoCrete®-2110 plasticized concrete is highly fluid while maintaining complete cohesion within the concrete matrix to eliminate excessive bleeding or segregation. Extended Slump Life and Set Control: Sika® ViscoCrete®-2110 has been formulated to provide controlled and predictable extended slump life for periods of 60 to 90 minutes with normal set times. The combined high range water reduction and superplasticizing action of Sika® ViscoCrete®-2110 provide the following benefits in hardened concrete:- Higher ultimate strengths allow for greater engineering design flexibility and structural economy
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
- Extended slump life
- Increased compressive strength when compared to reference concrete with same w/c ratio
- High early compressive strengths for earlier removal of forms and structural use of concrete
- High ultimate strengths allow for greater engineering design flexibility and structural economies
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
- Approved by the Ontario Ministry of Transportation
- Approved by the Ministère des Transports du Québec (MTQ)
Packaging
205 L (54 US gal.) drum

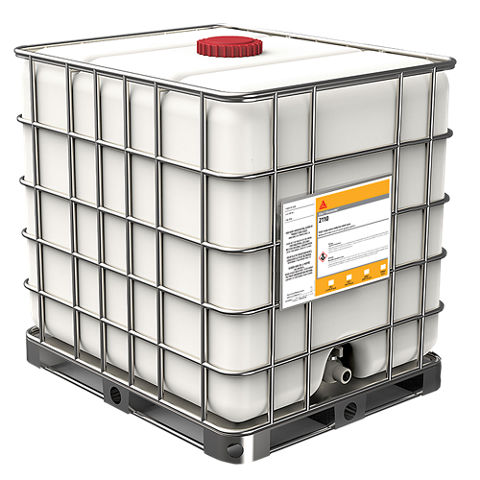

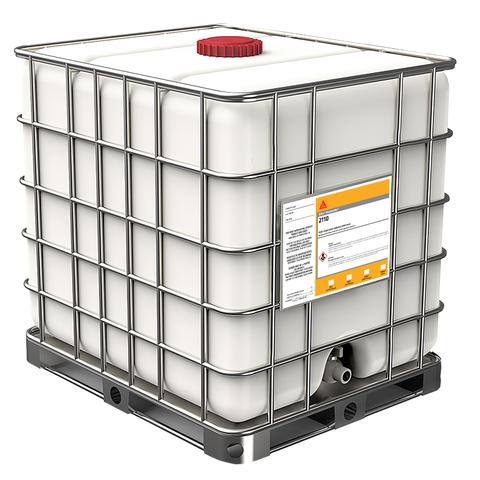

1040 L (275 US gal.) IBC*
Bulk delivery
*Intermediate Bulk Container
Colour
Orange Liquid
Product Details
ENVIRONMENTAL INFORMATION
- Conformity with LEED®v4 MR Credit (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations
-
Conformity with LEED®v4 MR Credit (Option 2): Building Product Disclosure and Optimization - Sourcing of Raw Materials
APPROVALS / CERTIFICATES
- ASTM C494 Types A and F
- AASHTO M194 Types A and F
Shelf Life
1 year when stored in dry warehouse conditions at temperatures between 10 and 27 °C (50 and 80 °F).
Storage Conditions
Store at above 5 °C (40 °F). If frozen, thaw and agitate thoroughly to return to normal state.
Specific Gravity
Approx. 1.09
Application
Mixing
For best superplasticizing results, add Sika® ViscoCrete®-2110 directly to freshly mixed concrete in the concrete mixer at the end of the batching cycle. It may also be dispensed as an integral material during the regular admixture batching cycle, or into freshly mixed concrete in a ready-mix truck, at the concrete plant or at the job site. Do not introduce Sika® ViscoCrete®-2110 directly onto dry cementitious materials.
To optimize the superplasticizing effect after the addition of Sika® ViscoCrete®-2110, Sika recommends that the combined materials be mixed for 60−80 revolutions either in the concrete mixer or in the ready-mix truck.
Combination with other admixtures: Sika® ViscoCrete®-2110 is highly effective as a single admixture or in combination with other Sika admixtures. If used in combination with certain Sikament® high range water reducers it may affect the plastic properties of fresh concrete. Contact your Sika Canada Technical Sales Representative for further information.
Combination with microsilica: Sika® ViscoCrete®-2110 is particularly well suited for use with microsilica because of its water reduction capability.
Recommended Dosage
Dosage rates will vary according to materials used, ambient conditions and the requirements of a specific project. Sika recommends dosage at 130–520 mL/100 kg (3–8 fl. oz. per 100 lb) of cementitious materials for general concrete applications. If maximum water reduction is required, dosage up to 780 mL/100 kg (12 fl.oz./100 lb) of cementitious may be used. In this case, delayed setting times may occur. Dosage rates outside the recommended range may be used where specialized materials such as microsilica are specified, extreme ambient conditions are encountered or unusual project conditions require special consideration. In this case, contact your Sika Canada Technical Sales Representative for further information.
