SikaInject®-304 DE

(former TPH.® VARIOTITE®)

Polyacrylic injection resin for permanent, watertight sealing

SikaInject®-304 DE is a 3-component polyacrylic resin with adjustable pot life and extremely high elongation, designed for curtain injection and permanent waterproofing according to EN 1504-5.

SikaInject®-304 DE provides the following characteristics and benefits:
  • Very low viscosity
  • Adjustable pot life by different concentration of part B
  • Injection by 2-C pump, ideally with equipped water-flushing pump
  • Can be used in combination with polymeric strengthening compound SikaInject® 315 PS
  • CE-Marked as stand-alone and with SikaInject® 315 PS
  • Watertight up to 7 bar with SikaInject® 315 PS
Product Data Sheet Show all documents

Usage

SikaInject®-304 DE can be used in the following applications, but is not limited to:
  • Waterproofing of cracks, joints and honeycombs
  • Injection into masonry, concrete structures, civil engineering construction and tunneling
  • Repair of failed warterbars/expansion joints in combination with a polymeric strengthening (PS) compound
  • Curtain injection into ground and sand


Advantages

SikaInject®-304 DE provides the following characteristics and benefits:
  • Very low viscosity
  • Adjustable pot life by different concentration of part B
  • Injection by 2-C pump, ideally with equipped water-flushing pump
  • Can be used in combination with polymeric strengthening compound SikaInject® 315 PS
  • CE-Marked as stand-alone and with SikaInject® 315 PS
  • Watertight up to 7 bar with SikaInject® 315 PS

Packaging

Part A1

20 kg

Part A2

0.5 kg

Part B

1 kg

Colour

Part A1

Transparent, liquid

Part A2

Colourless, liquid

Part B

White, solid

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Concrete injection for swelling sealing of cracks, voids and interstices (S) according to EN 1504-5:2004. Declaration of performance GER0513/24, CE-marking
  • Watertightness test up to 7 bar (with PS)
  • General Building Approval for Curtain Injection
Product Information

Shelf Life

12 months from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperature between 10 °C and 25 °C.

Density

Part A1

~1.22 kg/L

Part A2

~0.93 kg/L

Part B

~2.59 kg/L

Viscosity

Part A1

~65 cps

Part A2

~7.5 cps

Mixed Viscosity

~4 cps
Technical Information

Swelling

~25 %

Elongation at break

~750 %

(DIN EN ISO 527)

Application

Application Information

Mixing Ratio

1:1 parts by volume

Ambient Air Temperature

Minumum

5 °C

Maximum

35 °C

Substrate Temperature

Minimum

5 °C

Maximum

35 °C

Pot Life

10 s - 7 min

(DIN EN 14022)

Curing Time

1 min - 30 min

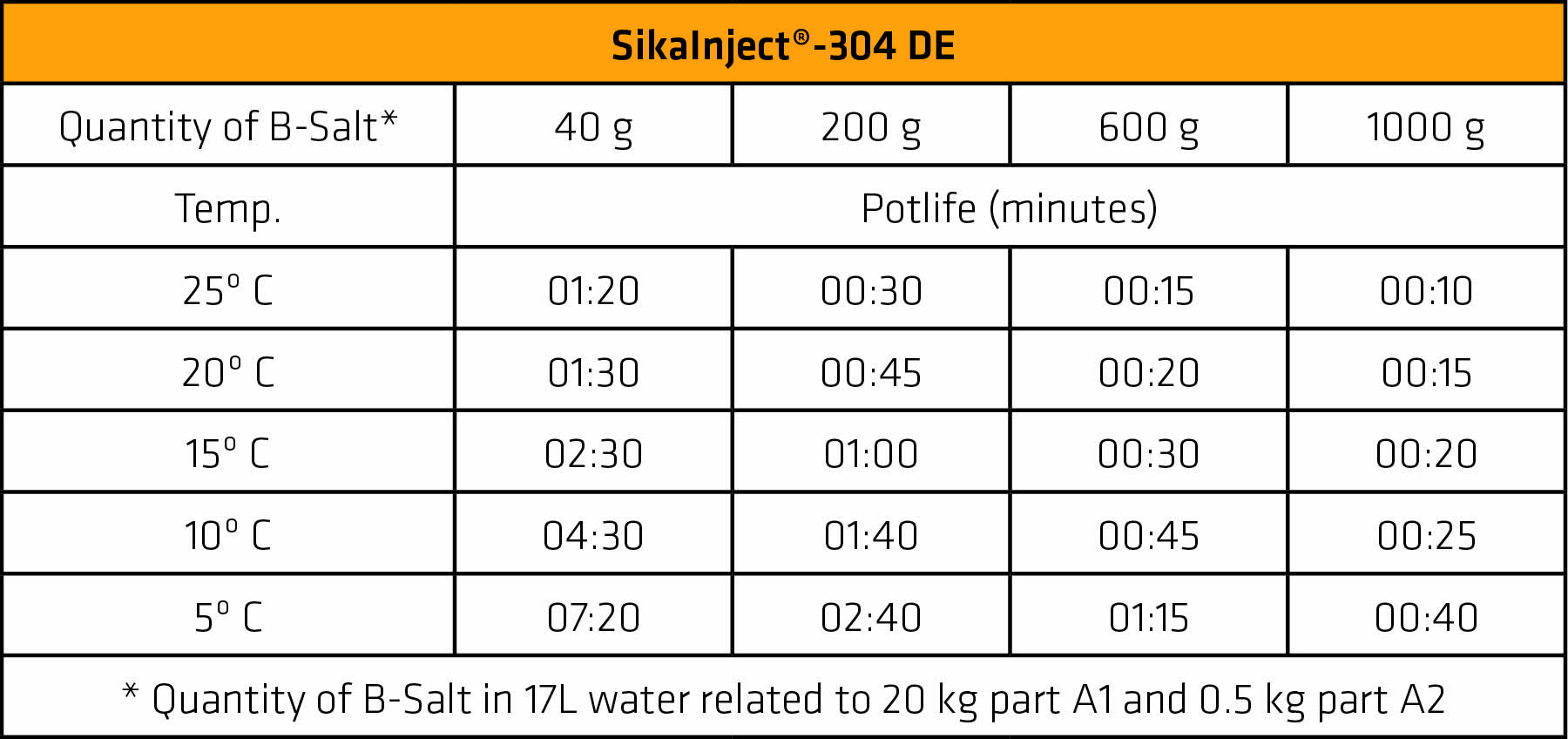

Reaction Time

Temp. (°C)

Pot Life (min:s)

Quantity of Part B*

40 g

200 g

600 g

1000 g

25

01:2000:3000:1500:10

20

01:3000:4500:2000:15

15

02:30

01:00

00:30

00:20

1004:3001:4000:4500:25
507:2002:4001:1500:40

* Quantity of Part B in 17 kg water related to 20 kg Part A1 and 0.5 kg Par A2.
Application steps

SUBSTRATE PREPARATION

Surfaces of cracks, joints and voids need to be clean, free of loose particles, dust, oil and any other bond-breaking substances. Any dirt must be blown out with compressed air.

MIXING

All parts are provided in pre-assembled container sizes to the correct mixing ratio.



1. Component A

Empty the contents of the small container Part A2 completely into the container of Part A1. Mix the parts thoroughly with a suitable stirrer/mixing paddle for three (3) minutes.



2. Component B

Part B is a powder and must be dissolved in 17 L of clean water. Mix three (3) minutes.



Components A and B prepared in this way are ready for use. The activated components A and B are stable during 4 hours and are applied by a 2-C-pump in the ratio of 1:1 parts by volume.



Refer to the following schematic for the preparation of SikaInject®-304 DE. Consult the appropriate Product Data Sheet for SikaInject®-304 DE PS used with the polymeric strengthening compound SikaInject® 315 PS.



CLEAN UP

Pump cleaning from liquid material with water only. Cured material can only be removed mechanically.
