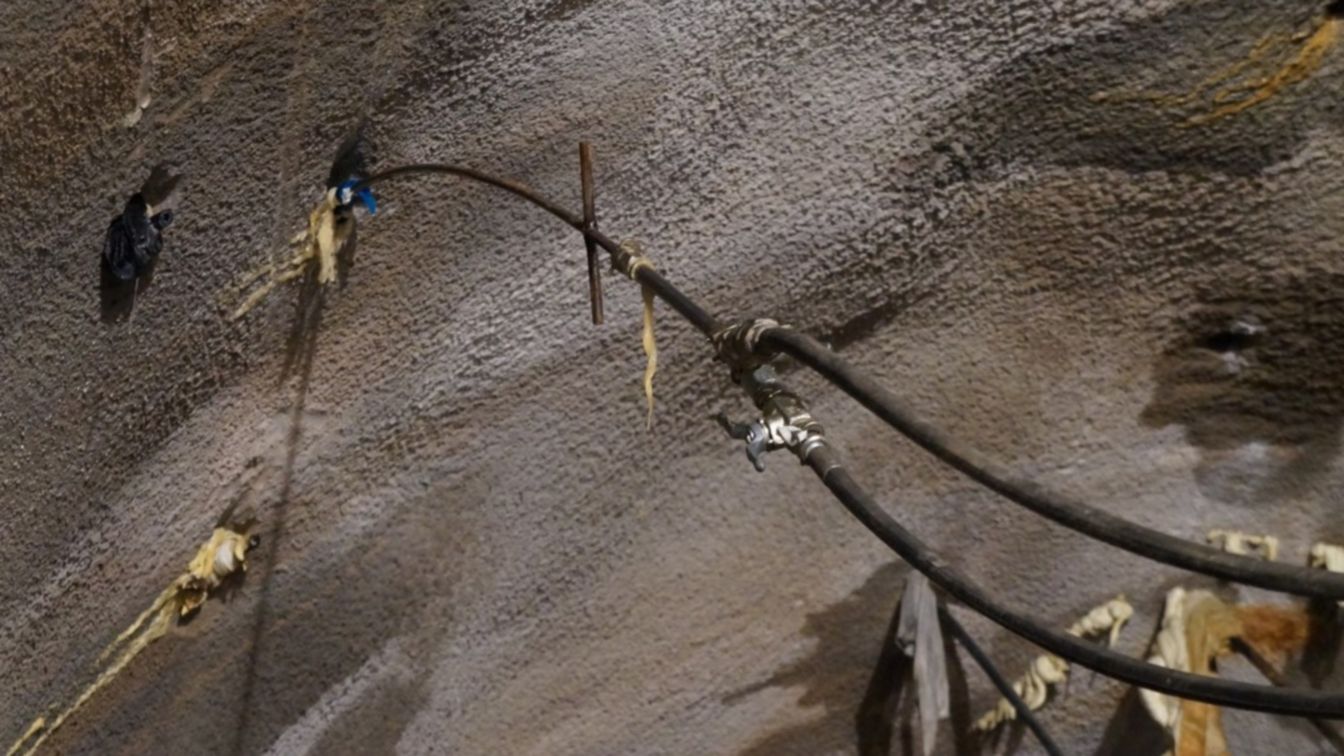

Injection is the procedure of pumping cement-based, polyurethane-based, epoxy-based or acrylate-based material into damaged structures or unconsolidated ground to restrict water infiltration and repair compromised structures making them watertight again for the long term.

Sika’s Injection Solutions Provide Many Advantages

  • We offer an extensive range of injection materials for all types of leak-sealing applications
  • Our injection solutions are tested and approved to the leading global standards
  • Sika’s experts provide technical advice and support
  • Selected Sika injection systems can also be used to increase or restore structural integrity and load-bearing capacity
  • The appropriate injection product is available for any type of ground conditions & Specialized Sika injection products are Used to fill voids in order to consolidate and stabilize the ground to ensure a faster, safer development process.
  • Sika's high performance injection materials are fully compatible with Sika’s complete engineered waterproofing systems.
    Learn more about our waterproofing systems.

Injection Products

Acrylate Resins

Acrylate resins are hydrophilic, very flexible and used for non-structural injection of cracks, joints and voids, including injection hose systems, compartment systems and area injections (e.g. grid and curtain). During application, acrylate resins have extremely low viscosity (similar to water) and therefore have ideal penetration abilities. Their reaction or hardening time is also adjustable, which allows flexibility to adapt the injection material to the prevailing conditions on site (temperature and injection distance, for example). Acrylate resin based materials seal and waterproof leaks through their hydrophilic swelling behavior in contact with water. The injection equipment is also easily cleaned with water.

Acrylate resin for injection sealing
Polyurethane Foams

Polyurethane foaming resins are designed to expand with water to temporarily block the passage of water through the crack or void. Their fast expansive reaction with water forms a tough and flexible elastic foam. For permanent waterproofing, these polyurethane foaming resins are re-injected with a suitable non-foaming injection resin, usually also based on polyurethane.

Polyurethane foam resin for injection sealing

Polyurethane Resins

Polyurethane resins are hydrophobic, flexible and used for non-structural injection sealing and waterproofing of voids, cracks and joints. Their low viscosity allows good penetration into the concrete structure to seal leaks and achieve a durable elastic seal. Polyurethane resins seal with very strong edge adhesion to concrete and have hydrophobic characteristics. In voids, cracks and joints with high water ingress, pre-injection as temporary water stopping with a polyurethane foaming resin is required.

Polyurethane resin for injection sealing
Epoxy Resins

Epoxy resins have relatively high tensile and compressive strengths in relation to concrete. They are generally regarded as ‘rigid’ materials and are widely used for structural repairs by injecting cracks and voids in load-bearing reinforced concrete structures or elements. Their low viscosity allows excellent penetration into cracks and strong adhesion to concrete, which helps to ensure permanent and durable load transfer. Epoxy resin based materials are suitable for many different structural injection requirements and applications in dry to slightly damp conditions.

Epoxy resin for injection sealing
Cementitious Grouts

Cementitious grouts are non-flexible and therefore non-movement-accommodating, rigid injection materials. Cementitious grouts are based on a blend of Portland cements and supplementary cementitious materials (SCMs). They are widely used for soil stabilization, cable bolting and earth tie-backs for excavation or soil stabilization. Due to their larger particle size compared to chemical injection products, these cement-based grouts often have reduced flow characteristics and penetration ability, along with higher permeability. However, when applicable these materials are often very economical.

Microfine cement suspension for injection

Successful Waterproofing with Sika Injection Systems

There are three primary success factors involved in ensuring the effectiveness and durability of injection projects. It is essential that the right combination of injection materials, injection equipment and injection method are selected. Together, this is what Sika’s extensive technical and practical experience provides:

Injection Material

The selection of the right injection material and the right specific injection product for the defined project requirements is the first key factor for success. The material’s viscosity, flexibility and behavior in contact with water are especially important - all which can significantly influence the effectiveness of the injection.

Injection Equipment

The second key success factor is having appropriate equipment for the selected injection material - for correct material preparation, mixing and delivery. This includes: the initial dosage and mixing, delivery from a suitable pump, to use of the right packers/ ports/ connectors.

Injection Method / Application

Thirdly, the correct injection method and application techniques must be followed by trained, skilled and experienced contractors, to ensure the success and provide complete, permanent leak-sealing solutions.

Successful Injection with Sika Solutions Graphic
