Sikaplan®-800 Geotextile

Sikaplan®-800 Geotextile

Geotextile for protection/separation — 800 g/m2

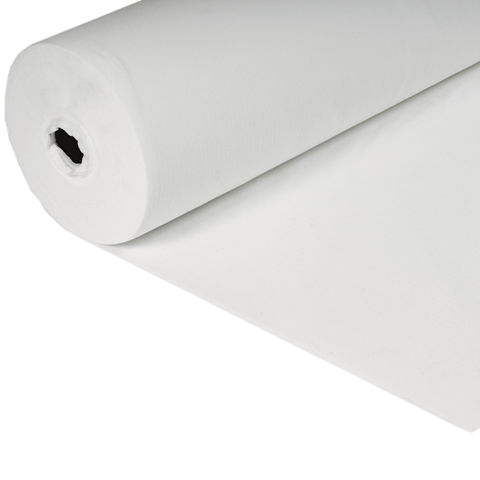

Sikaplan®-800 Geotextile is a 800 g/m2 polypropylene, non-woven geotextile. It is used as a protection or separation layer beneath underground or tunnel waterproofing sheet membranes.

  • High protection and resistance
  • Made of virgin material
  • Part of the complete waterproofing membrane system
  • Highly resistant to ageing
  • Resistant to all natural aggressive substances in groundwater and soil
  • Suitable for contact with acidic (soft) water
  • Can be installed on damp and wet substrates
  • Flexible in cold temperatures

Product Data Sheet Show all documents

Usage

The Product is used as a:
  • Separation layer under waterproofing sheet membranes
  • Protection layer under waterproofing sheet membranes

Advantages

  • High protection and resistance
  • Made of virgin material
  • Part of the complete waterproofing membrane system
  • Highly resistant to ageing
  • Resistant to all natural aggressive substances in groundwater and soil
  • Suitable for contact with acidic (soft) water
  • Can be installed on damp and wet substrates
  • Flexible in cold temperatures


Packaging

Roll length

25 m

Roll width

2 m or 3 m

Rolls are wrapped in PE film.

Colour

Colour

white

Surface Texture

structured

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • CE Marking and Declaration of Performance to EN 13249:2016 — Geotextiles and geotextile-related products — Characteristics required for use in the construction of roads and other trafficked areas (excluding railways and asphalt inclusion) — Filtration and Separation
  • CE Marking and Declaration of Performance to EN 13252:2016 — Geotextiles and geotextile-related products — Characteristics required for use in drainage systems — Filtration and Separation
  • CE Marking and Declaration of Performance to EN 13256:2016 — Geotextiles and geotextile-related products — Characteristics required for use in the construction of tunnels and underground structures — Protection


Product Information

Composition / Manufacturing

Polypropylene

Shelf Life

5 years from date of production

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +35 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage.
Always refer to packaging.

Thickness

At 2 kPa

5.4 mm ± 0.5 mm

Mass per unit area

800 g/m2 ± 80 g/m2

(ISO 9864)
Technical Information

Resistance to Static Puncture

9.5 kN ± 1.0 kN

(EN ISO 12236)

Resistance to Dynamic Perforation

3 mm ± 1 mm

(EN ISO 13433)

Tensile Strength

Longitudinal (MD)

55.0 kN/m ± 7.2 kN/m

Transversal (CMD)

55.0 kN/m ± 7.2 kN/m

Elongation

Longitudinal (MD)

70 % ± 16 %

Transversal (CMD)

80 % ± 18 %

Water Permeability

Normal to the plane

24 L/(m²·s) ± 8 L/(m²·s)

Water Flow Capacity

At 20 kPa

0.01 L/(m·s) (R/R, i=1)



Opening Size

Characteristic

60 µm ± 18 µm

Resistance to UV Exposure

Not permanently UV stable

Resistance to Weathering

Not resistant to permanent weathering

Reaction to Fire

Class E

(EN 13501-1)

Application

Application steps

APPLICATION INSTRUCTIONS

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
