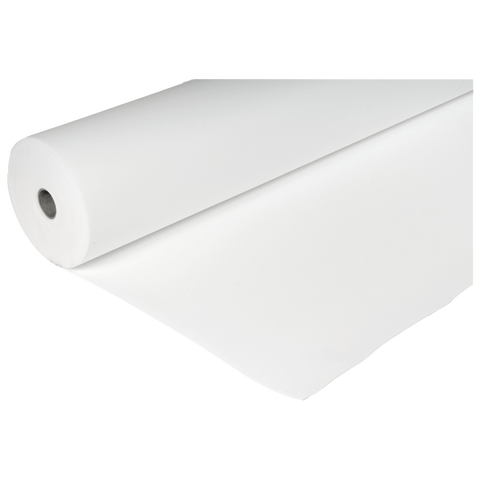

Sikaplan® W Felt 500 PP

Sikaplan® W Felt 500 PP

POLYPROPYLENE PROTECTION FABRIC FOR DRAINAGE SYSTEMS AND UNDERGROUND WATERPROOFING

Sikaplan® W Felt 500 PP is a polypropylene non-woven (thermo-fixed) fabric levelling filtration/separation layer in drainage systems. It is also used as a protection/separation layer beneath underground or tunnel waterproofing sheet membranes. Mass per unit area: ~500 g/m2.

  • Highly resistant to ageing
  • Optimized tensile strength and elongation

  • Resistant to all natural aggressive mediums in ground water and soil
  • Suitable for contact with soft water (aggressive to concrete)
  • Flexible in cold temperatures
  • Can be installed on damp and wet substrates
Product Data Sheet Show all documents

Usage

The product is designed for:
  • Filtration or separation in drainage systems
  • Surface levelling or protection under sheet waterproofing membranes in tunnels and other underground structures

Advantages

  • Highly resistant to ageing
  • Optimized tensile strength and elongation

  • Resistant to all natural aggressive mediums in ground water and soil
  • Suitable for contact with soft water (aggressive to concrete)
  • Flexible in cold temperatures
  • Can be installed on damp and wet substrates

Packaging

Roll sizes: 2.00 m (roll width) × 25.00 m (roll length)

Colour

Rolled fleece, wrapped in PE-film.

Surface

structured

Colour

white

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • CE Marking and Declaration of Performance to EN 13252 - Geotextiles and geotextile-related products - Characteristics required for use in drainage systems — Filtration and separation (F + S)
  • CE Marking and Declaration of Performance to EN 13256 - Geotextiles and geotextile related products - For use in the construction of tunnels and underground structures — Protection (P)


Product Information

Shelf Life

5 years from date of production

Storage Conditions

Rolls must be stored in their original package, in horizontal position and under cool and dry conditions. They must be protected from direct sunlight, rain, snow and ice, etc.

Thickness

(4.0 ± 0.4) mm

(EN ISO 9863-1)

Mass per unit area

(500 ± 50) g/m2

(EN ISO 9864)
Technical Information

Resistance to Static Puncture

(4400 +0/-400) N

(EN ISO 12236)

Resistance to Dynamic Perforation

Cone drop

(10 +7/-0) mm

Tensile Strength

Longitudinal (MD)

(21.0 +0/-2.1) kN/m

Transversal (CMD)

(25.0 +0/-2.5) kN/m

Elongation at break

Longitudinal (MD)

(60 ± 20) %

Transversal (CMD)

(80 ± 20) %

Permeability to Liquid Water

Normal to the plane

(50 +0/-10) L·m-2·s-1

Durability

To be covered within 2 weeks after installation.

Predicted to be durable for 25 years in natural soils with
4 ≤ pH ≤ 9 and soil temperatures ≤ 25 °C on the basis of
the results of test method B.4.2.2 and a test duration of 28 days.

(EN 13256)

Opening Size

Characteristic

(72 ± 30) μm

Ambient Maximum Temperature of Liquids

+32 °C

Application

Application Information

Ambient Air Temperature

+5 °C min. / +35 °C max.

Substrate Temperature

0 °C min. / +35 °C max.


Application steps

SUBSTRATE QUALITY

In-situ concrete:
Clean, sound and dry, homogeneous, free from oils and grease, dust and loose or friable particles.
Shotcrete:
The profile of the shotcrete surface must not exceed a ratio of length to depth of 10:1 and its min. radius must be 20 cm.

The shotcrete surface must not contain broken aggregates.

Any leaks shall be sealed with Sika® waterproof plugging mortar, or drained with Sika® FlexoDrain.

Where necessary to achieve the desired profile/surface, apply a fine sprayed concrete layer on the shotcrete surface with a min. thickness of 5 cm and aggregate diameter not exceeding 4 mm.

Steel (girders, reinforcement mesh, anchors, etc.) must also be covered with a minimum 5 cm of fine sprayed concrete.
