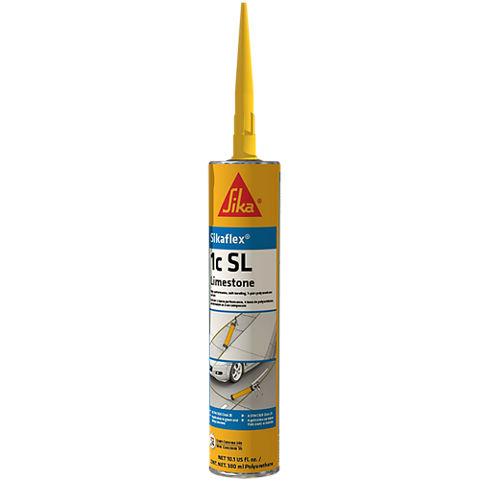

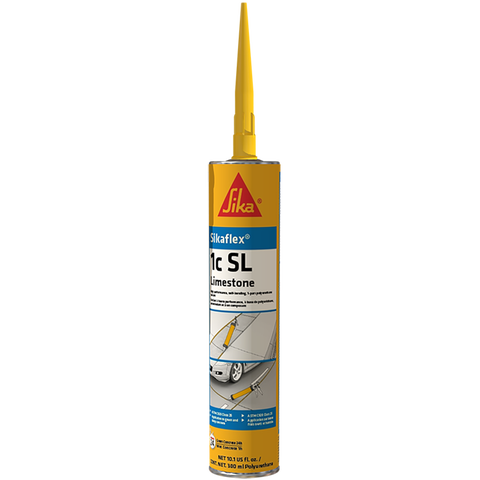

Sikaflex®-1c SL
Sikaflex®-1c SL is a single component, self-leveling, premium-grade polyurethane sealant with an accelerated curing capacity.
- 1-component, no mixing
- Self-leveling, pourable
- Accelerated curing
- Can be applied to green concrete 24 hours after pour
- Can be applied to damp concrete 1 hour after getting wet
- Extremely elastic
- High durability
- Resists aging, weathering
- Excellent adhesion
- Convenient, easy-to-use packaging
- Jet fuel resistant
- Water Immersion Applications
Usage
Sikaflex®-1c SL is used to seal horizontal expansion joints in concrete and cementitious slabs such as:- Sidewalks
- Balconies
- Pavements
- Terraces
- Warehouses
- Factories
- Civil Structures
- Plazas
- Pitch Pans
- Canals and Water Treatment
Advantages
- 1-component, no mixing
- Self-leveling, pourable
- Accelerated curing
- Can be applied to green concrete 24 hours after pour
- Can be applied to damp concrete 1 hour after getting wet
- Extremely elastic
- High durability
- Resists aging, weathering
- Excellent adhesion
- Convenient, easy-to-use packaging
- Jet fuel resistant
- Water Immersion Applications
Packaging
- 300 mL (10.1 fl. oz.) moisture-proof composite cartridges, 24/case
- 858 mL (29 fl. oz.) moisture-proof composite cartridges,12/case
Colour
Limestone
Product Details
APPROVALS / CERTIFICATES
- Meets Federal Specification TT-S-00230C, Type I, Class A
- Meets ASTM C-920, Type S, Grade P, Class 25, use T, M, A, G, I.
Shelf Life
12 months in original unopened packaging
Storage Conditions
- Store at 4–35 °C (40–95 °F)
- Condition material to 18–24 °C (65–75 °F) before using.
Volatile organic compound (VOC) content
See Product Safety Data Sheet
Shore A Hardness
| 40 ± 5 | (21 days at 23 °C (73 °F) and 50 % R.H.) (ASTM D-2240) |
Tensile Strength
| 1034 kPa (150 psi) | (21 days at 23 °C (73 °F) and 50 % R.H.) (ASTM D-412) |
Elastic Recovery
| > 90 % | (23 °C (73 °F) and 50 % R.H.) (ASTM C-719) |
Movement Capability
| ±25 % | (23 °C (73 °F) and 50 % R.H.) (ASTM C-719) |
Resistance to Weathering
Excellent
Service Temperature
-40 °C to +77 °C (-40 °F to +170 °F)
Adhesion in Peel
| Substrate | Peel Strength | Adhesion loss |
| Concrete | > 12.7 kg (28 lbs) | 0 % |
| Aluminum | > 13.6 kg (30 lbs) | 0 % |
| Glass | > 16.8 kg (37 lbs) | 0 % |
Tensile Stress at Specified Elongation
| 758 kPa (110 psi) at 100 % | (21 days at 23 °C (73 °F) and 50 % R.H.) (ASTM D-412) |
Application
Ambient Air Temperature
4–38 °C (40–100 °F). Sealant should be installed when joint is at mid-range of its anticipated movement.
Substrate Temperature
4–38 °C (40–100 °F). Sealant should be installed when joint is at mid-range of its anticipated movement.
Curing Rate
| Tack-free Time: 1 to 2 hours Final Cure: 3 to 5 days | (23 °C (73 °F) and 50 % R.H.) (ASTM C 679) |
Consumption
300 mL (10.1 fl. oz.) Cartridge: ~Yield in Linear meter per liter
| Width/Depth mm (po) | 6 (1/4) | 10 (3/8) | 13 (1/2) |
| 6 (1/4) | 7.4 | ||
| 10 (3/8) | 4.9 | 3.3 | |
| 13 (1/2) | 3.7 | 2.5 | 1.9 |
| 1.9 (3/4) | 2.5 | 1.6 | 1.2 |
| 2.5 (1) | 0.9 | ||
| 3.2 (1.25) | 0.7 | ||
| 3.8 (1.5) | 0.6 |
858 mL (29 fl. oz.) Cartridge: ~Yield in Linear meter per liter
| Width/Depth | 6 (1/4) | 10 (3/8) | 13 (1/2) |
| 6 (1/4) | 21.3 | ||
| 10 (3/8) | 14.2 | 9.4 | |
| 13 (1/2) | 10.6 | 7.1 | 5.3 |
| 1.9 (3/4) | 7.1 | 4.7 | 3.5 |
| 2.5 (1) | 2.6 | ||
| 3.2 (1.25) | 2.1 | ||
| 3.8 (1.5) | 1.8 |
SUBSTRATE PREPARATION
Clean all surfaces. Joint walls must be sound, clean, dry (may be damp, follow instructions for damp concrete), frost-free, and free of oil and grease. Curing compound residues and any other foreign matter must be thoroughly removed. A mechanically roughened surface will also enhance bond. Sikaflex®-1c SL can be applied in green concrete after the concrete has cured for a minimum of 24 hours at 23 °C (75 °F). For green concrete applications in control joints the concrete must be cut 8 hours (min.) prior to sealant installation and in expansion joint the forms must be removed 6 hours (min.) prior to sealant installation. For wet concrete applications all excess or standing water must be displaced and concrete must then dry for a minimum of 60 min prior to sealant installation. Install bond breaker tape or backer rod to prevent bond at base of joint. If sealant will be used in immersion service then priming is required - when using primer, green and damp concrete conditions should be avoided.
