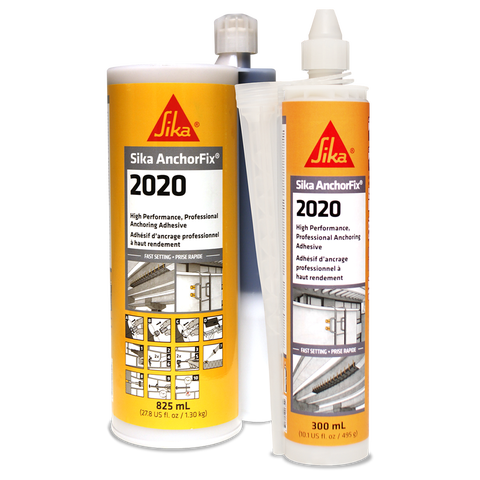

Sika AnchorFix®-2020

Sika   AnchorFix®-2020   is   a   two-component,   solvent   and   styrene-free,   epoxy   acrylate-based   anchoring   adhesive engineered for application down to -10 °C (14 °F). Sika AnchorFix®-2020 achieves high early strengths quickly in numerous base materials and is suitable for medium / heavy loads in both structural and non-structural applications

  • Fast curing - cures down to -10 °C (14 °F) when material is pre-conditioned to 23 °C (73 °F).
  • ƒƒCartridge format compatible with standard application guns.
  • ƒƒHigh load capacity.
  • ƒƒSuitable for cracked and uncracked concrete.
  • ƒƒStyrene-free, VOC-compliant and odourless.
  • ƒƒNon-sag, may be applied overhead.ƒƒ
  • Sets up in dry or damp holes.
  • Approved for threaded rods and reinforcing bars in concrete.
  • ƒƒApproved for threaded bars and sockets in masonry.
  • Reduced edge and spacing values allowing critical applications.
  • ƒƒReduced drilling diameters of 2 mm clearance resulting in economic installation.
  • ƒƒFlexible embedment depths from 8d -12d.
  • ƒƒResistant to a wide range of chemicals. Contact Sika Canada for detailed information.
  • ƒƒDesign guide and software available. Contact Sika Canada for technical support.

Approvals/Certifications

  • ANSI/NSF Standard 61 approved for contact with potable water.
  • ƒƒSeismic Design Categories: C, D, E & F under the IBC or IRC.
  • ƒES to AC308 by IAPMO (ER-0601) - approved for cracked and uncracked concrete.
  • Evaluation in progress for The Road Authority (TRA) and Ministry of Transportation of Ontario (MTO) - 9.30.25 prequalification list for Structural Dowel Adhesives - Acrylic and Epoxy Resins -
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Anchoring of all grades of rebars / threaded rods in concrete, masonry, voided stone and rock, hard natural stone and solid or hollow bricks and blocks.
  • ƒƒGrouting horizontally and vertically, where extremely rapid setting, fast turn-around times are needed.
  • Suitable for cooler temperatures and inclement conditions, including -10 °C (14 °F) temperatures and wet substrates.
  • Grouting in external environments where applications are subject to dynamic loads and vibrations.
  • ƒƒUse as a ‘pick-proof’ sealant in secure or holding suites and similar facilities.
  • ƒƒAnchoring structural steel to concrete, safety barriers, balcony stanchions, canopies, signs, hand rails, racking, machinery, masonry supports, stadium seats, reinforcing and starter bars.

Advantages

  • Fast curing - cures down to -10 °C (14 °F) when material is pre-conditioned to 23 °C (73 °F).
  • ƒƒCartridge format compatible with standard application guns.
  • ƒƒHigh load capacity.
  • ƒƒSuitable for cracked and uncracked concrete.
  • ƒƒStyrene-free, VOC-compliant and odourless.
  • ƒƒNon-sag, may be applied overhead.ƒƒ
  • Sets up in dry or damp holes.
  • Approved for threaded rods and reinforcing bars in concrete.
  • ƒƒApproved for threaded bars and sockets in masonry.
  • Reduced edge and spacing values allowing critical applications.
  • ƒƒReduced drilling diameters of 2 mm clearance resulting in economic installation.
  • ƒƒFlexible embedment depths from 8d -12d.
  • ƒƒResistant to a wide range of chemicals. Contact Sika Canada for detailed information.
  • ƒƒDesign guide and software available. Contact Sika Canada for technical support.

Approvals/Certifications

  • ANSI/NSF Standard 61 approved for contact with potable water.
  • ƒƒSeismic Design Categories: C, D, E & F under the IBC or IRC.
  • ƒES to AC308 by IAPMO (ER-0601) - approved for cracked and uncracked concrete.
  • Evaluation in progress for The Road Authority (TRA) and Ministry of Transportation of Ontario (MTO) - 9.30.25 prequalification list for Structural Dowel Adhesives - Acrylic and Epoxy Resins -

Packaging

300 mL (10.1 US fl. oz) single piston cartridges/12 per case
825 mL (27.8 US fl. oz) side-by-side 10:1 cartridges/6 per case

Colour

Component A: white
Component B: black
Component A+B mixed: grey
