Sika® ViscoCrete®-2100
HIGH RANGE WATER REDUCING ADMIXTURE
Sika® ViscoCrete®-2100 is a high range water reducing and superplasticizing admixture utilizing Sika's ViscoCrete® polycarboxylate polymer technology.
Sika® ViscoCrete®-2100 plasticized concrete is highly fluid while maintaining complete cohesion within the concrete matrix to eliminate excessive bleeding or segregation.
Extended Slump Life and Set Control: Sika® ViscoCrete®-2100 has been formulated to provide controlled and predictable extended slump life for periods of 60 to 90 minutes with normal set times.
The combined high range water reduction and superplasticizing action of Sika® ViscoCrete®-2100 provide the following benefits in hardened concrete:
- Higher ultimate strengths allow for greater engineering design flexibility and structural economies
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
Sika® ViscoCrete®-2100 has been formulated to provide maximum water reduction and extended slump retention at low dosages.
Usage
- Sika® ViscoCrete®-2100 may be used in both ready-mix and precast applications, as a plant added high range water reducer to provide excellent plasticity while maintaining slump for up to 90 minutes. Controlled set times make it ideal for horizontal and vertical applications.
- Sika® ViscoCrete®-2100 is ideal for production of Self-Consolidating Concrete (SCC).
Advantages
Water Reduction: Sika® ViscoCrete®-2100 can be dosed in small amounts to obtain water reduction from 10−15 % and will achieve water reduction up to 45 % at high dosage rates. Sika® ViscoCrete®-2100 is suitable for all levels of water reduction. High Plasticity: The superplasticizing action of Sika® ViscoCrete®-2100 provides high-slump, flowing concrete that maintains excellent workability and may be placed with minimal vibration even at very low water cement ratio’s as low as 0.25.Sika® ViscoCrete®-2100 plasticized concrete is highly fluid while maintaining complete cohesion within the concrete matrix to eliminate excessive bleeding or segregation.
Extended Slump Life and Set Control: Sika® ViscoCrete®-2100 has been formulated to provide controlled and predictable extended slump life for periods of 60 to 90 minutes with normal set times.
The combined high range water reduction and superplasticizing action of Sika® ViscoCrete®-2100 provide the following benefits in hardened concrete:
- Higher ultimate strengths allow for greater engineering design flexibility and structural economies
- Reduced water cement ratios produce more durable, dense concrete with reduced permeability
- Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance
Sika® ViscoCrete®-2100 has been formulated to provide maximum water reduction and extended slump retention at low dosages.
Packaging
205 L (54 US gal.) drum

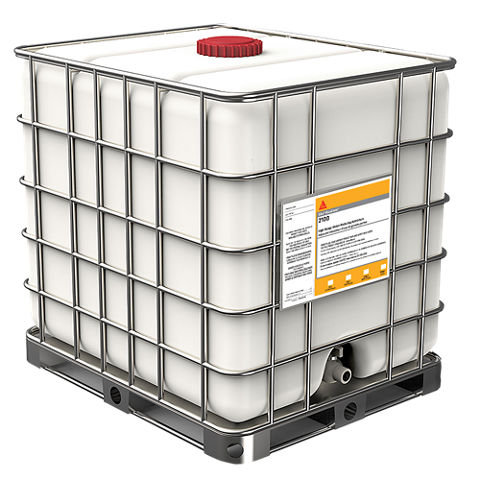

1040 L (275 US gal.) IBC
Bulk delivery
Colour
Liquid / Light blue
Product Details
ENVIRONMENTAL INFORMATION
Conformity with LEED®v4 MR Credit (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations - Conformity with LEED®v4 MR Credit (Option 1): Building Product Disclosure and Optimization - Sourcing of Raw Materials
APPROVALS / CERTIFICATES
- ASTM C494 Types A and F
- AASHTO M194 Type A and F
- Approved by the Ontario Ministry of Transportation (MTO)
- Approved by the Ministère des Transports du Québec (MTQ)
Shelf Life
1 year when stored in dry warehouse conditions, at temperatures between 10 °C and 27 °C (50 °F and 80 °F).
Storage Conditions
Store in dry conditions at temperatures above 2 °C (35 °F). If frozen, thaw and agitate thoroughly to return to normal state.
Specific Gravity
Approx. 1.08
Application
Mixing
Mixing
For best superplasticizing results, add Sika® ViscoCrete®-2100 directly to freshly mixed concrete in the concrete mixer at the end of the batching cycle. It may also be dispensed as an integral material during the regular admixture batching cycle, or into freshly mixed concrete in a ready-mix truck, at the concrete plant or at the job site. To optimize the superplasticizing effect after the addition of Sika® ViscoCrete®-2100, Sika recommends that the combined materials be mixed for 60−80 revolutions either in the concrete mixer or in the ready-mix truck. Do not introduce Sika® ViscoCrete®-2100 directly onto dry cementitious materials.
Combination with other admixtures: Sika® ViscoCrete®-2100 is highly effective as a single admixture or in combination with other Sika admixtures. If used in combination with certain Sikament® high range water reducers, it may affect the plastic properties of fresh concrete. Please contact your Sika Canada Technical Sales Representative for further information.
Combination with microsilica: Sika® ViscoCrete®-2100 is particularly well suited for use with microsilica because of its water reduction capability.
Recommended Dosage
Dosage rates will vary according to materials used, ambient conditions and the requirements of a specific project. Sika recommends dosage at 65−390 mL/100 kg (1−6 fl.oz. per 100 lb) of cementitious materials for conventional concrete applications. If high slump or Self-Consolidating Concrete (SCC) is required, dosage from 325−780 mL/100 kg (5–12 fl.oz./100 lb) of cementitious materials may be used.
Dosage rates outside the recommended range may be used where specialized materials such as microsilica are specified, extreme ambient conditions are encountered or unusual project conditions require special consideration. Please contact your Sika Canada Technical Sales Representative for more information and assistance.
