Sika® Stabilizer-1518 TBM CA

Sika® Stabilizer-1518 TBM CA

FOAMING AGENT FOR TBM-EPBM TUNNELING

Sika® Stabilizer-1518 TBM CA is a specially designed liquid soil conditioning foaming agent without glycol. It has been formulated to be used with earth pressure balance machines (EPBM) for modifying the properties of the excavated soil particularly in highly cohesive soils.

  • Modifies properties of the excavated soil
  • Improves the excavation process and TBM performance
  • Can be used in acid and basic soils
  • Lubricating properties minimises friction between soil particles and reduces the cutting wheel torque
  • Prevents clay from plugging
  • Reduces dust in the air and decreases the wear of cutters in rock excavation
  •  Easy to handle and use
  • Normal or hard fresh water can be used to produce the foam
Product Data Sheet Safety Data Sheet Show all documents

Usage

Produces a stable foam which can be easily injected into highly cohesive soils during tunnelling operations  with earth pressure balance machines (EPBM).

Advantages

  • Modifies properties of the excavated soil
  • Improves the excavation process and TBM performance
  • Can be used in acid and basic soils
  • Lubricating properties minimises friction between soil particles and reduces the cutting wheel torque
  • Prevents clay from plugging
  • Reduces dust in the air and decreases the wear of cutters in rock excavation
  •  Easy to handle and use
  • Normal or hard fresh water can be used to produce the foam

Packaging

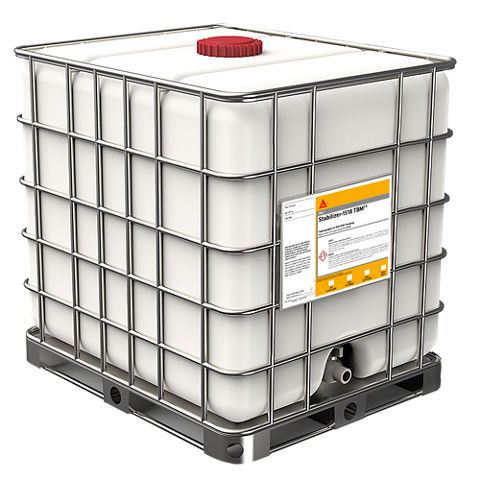

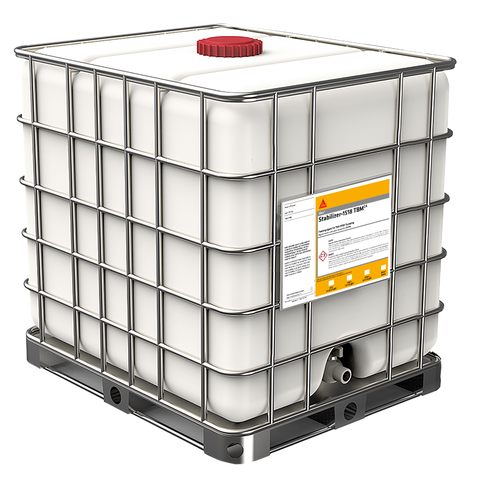

1040L IBC

Colour

Liquid / Clear, slightly yellow

Product Details

Product Information

Composition / Manufacturing

Anionic surfactants and high efficiency polymer

Shelf Life

18 months from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 ºC and 35 °C. Always refer to packaging.

Density

1,050 kg/l ±0,05

Solubility

Completely soluble in water

pH-Value

7 ± 0,05
System information

Compatibility

Contact your Sika Canada technical sales reprensentative for additional information.

Application

Application Information

Mixing

Inject through standard TBM dosing and foaming equipment
Consumption

Recommended Dosage

Recommended dosage

~1,5 - 3,0 %

Foam Expansion Ratio (FER)

~1,5:5 to 1:20

Foam Injection Ratio (FIR)

~ 10 % up to 100 %

This information is a guide only and will be specific to each soil type. Preliminary trials in the laboratory must always be carried out to determine
foam parameters, such as dosage FER and FIR. Contact your Sika Canada technical sales representative for additional information.
