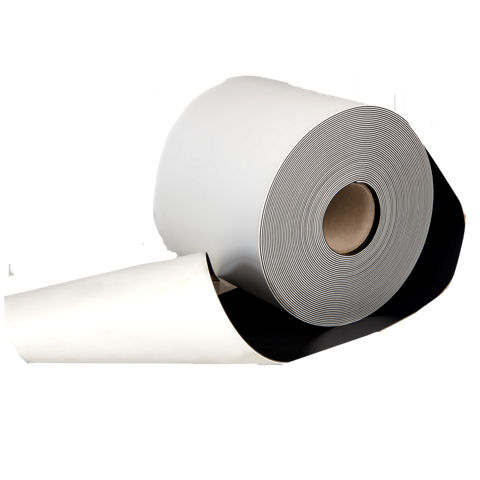

Sikaplan® WP Tape-200

Sikaplan® WP Tape-200

Termination, fixing and sealing tape for Sikaplan® WP Membrane systems

Sikaplan® WP Tape-200 is a modified PVC based waterproofing sealing tape for terminations and fixings of Sikaplan® WP membranes.

  • Good adhesion to various substrates
  • Long-term water resistance under hydrostatic pressure
  • Optimised workability
  • Hot-air weldable
  • Flexible in cold temperatures
  • No lateral water underflow between the concrete structure and the tape
Product Data Sheet Show all documents

Usage

Sikaplan® WP Tape-200 is used as a waterproofing sealing tape that is heat-weldable to PVC based Sikaplan® WP waterproofing membranes. Sikaplan® WP Tape-200 is used for:
  • Connecting Sikaplan® WP membranes to the substrate and sealing edges and terminations
  • Waterproofing tunnel cross-sections that require high performance, secure termination of the Sikaplan® WP Membrane System


Advantages

  • Good adhesion to various substrates
  • Long-term water resistance under hydrostatic pressure
  • Optimised workability
  • Hot-air weldable
  • Flexible in cold temperatures
  • No lateral water underflow between the concrete structure and the tape

Packaging

Roll length

20 m

Roll width

200 mm

Thickness

2 mm

Refer to the current price list for available packaging variations.

Colour

Surface texture

smooth

Top layer colour

White

Bottom layer colour

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Hydrostatic Pressure Resistance Test over 245 Days Sikaplan® WP Tape-200, MFPA,
Product Information

Composition / Manufacturing

Polyvinylchloride (PVC-P)

Shelf Life

18 months from date of production

Storage Conditions

The Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between -5 °C and +35 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to the packaging.
System information

System Structure

The Sikaplan® WP Tape-200 system consists of a PVC tape and a Sikadur® epoxy adhesive for bonding.

The following system products must be used:

Tape

Sikaplan® WP Tape-200

Adhesive

Sikadur-Combiflex® CF Adhesive Normal

Sikadur-Combiflex® CF Adhesive Rapid

Ancillary products

Sikaplan® WP 1100 membrane systems

Sikaplan® WP 2100 membrane systems
Technical Information

Tensile Strength

Longitudinal (MD)

> 14 N/mm²

Transversal (CMD)

> 14 N/mm²

Tear Strength

Longitudinal (MD), Method B: V = 50 mm/min

≥ 42 kN/m

Transversal (CMD), Method B: V = 50 mm/min

≥ 42 kN/m

Reaction to Fire

Class E

(EN 13501-1)

Service Temperature

Maximum

+35 °C

Minimum

-10 °C

Application

Consumption

Consumption

Adhesive

Consumption

Sikadur-Combiflex® CF Adhesive Normal

Sikadur-Combiflex® CF Adhesive Rapid

1.0 kg/m

Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
Application steps

APPLICATION

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

IMPORTANT

Water ingress caused by lack of Product adhesion

Adhesive residue contamination left on the black surface of the tape can affect adhesion to the concrete substrate and allow water ingress.

  1. Do not apply adhesive tapes to the black side of the waterproofing tape.

Application below +5 °C

Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.

Reference must be made to the following document: Sika Method Statement 85002070701 Sikaplan® WP Tape-200 / Sikaplan® WT Tape-200 Waterproofing of Cross Passage
