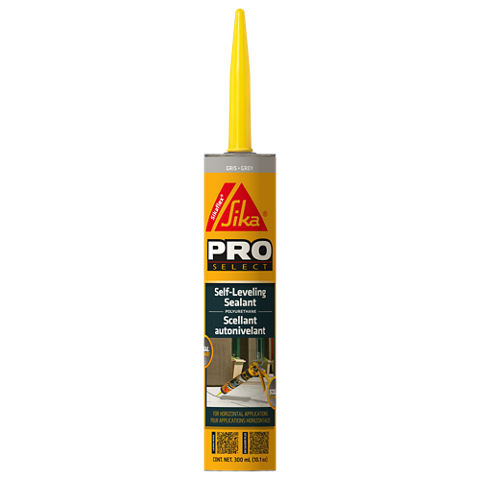

Sikaflex® Self Leveling Sealant
Sikaflex® Self Leveling Sealant is a single component, self-levelling, premium-grade polyurethane sealant with an accelerated curing capacity.
- 1-component, no mixing required
- Self-levelling, pourable
- Accelerated curing
- Waterproof once cured
- Permanently elastic
- High durability
- Resists aging, weathering
- Excellent adhesion
- Convenient, easy-to-use packaging
- Paintable with water-, oil- or rubber-based paints
- Fully submersible in water after cured
Usage
Sikaflex® Self Leveling Sealant is used to seal horizontal expansion joints in concrete and cementitious slabs such as:- Driveways
- Garages
- Sidewalks
- Balconies
- Pavements
- Terraces
- Warehouses
- Factories
- Civil structures
- Plazas
- Basement floors
- Water immersion applications
Advantages
- 1-component, no mixing required
- Self-levelling, pourable
- Accelerated curing
- Waterproof once cured
- Permanently elastic
- High durability
- Resists aging, weathering
- Excellent adhesion
- Convenient, easy-to-use packaging
- Paintable with water-, oil- or rubber-based paints
- Fully submersible in water after cured
Packaging
- 300 mL (10.1 fl. oz) moisture proof composite cartridge, 12/case
- 858 mL (29 fl. oz. (858 ml) moisture-proof composite cartridges, 12/case
Colour
- Grey in 300 mL (10.1 fl. oz) and 858 mL (29 fl. oz) cartridges
- Sandstone only available in 858 mL (29 fl. oz) cartridge format
Product Details
APPROVALS / CERTIFICATES
- Meets Federal Specification TT-S-00230C, Type 1, Class A
- Meets ASTM C920, Type S, Grade P, Class 25
Shelf Life
12 months in original unopened packaging
Storage Conditions
Store at temperatures between 4 °C and 35 °C (40 °F and 95 °F). Condition product to 18 °C – 24 °C (65 °F – 75 °F) before using.
Shore A Hardness
| 40 ± 5 (21 days) | (ASTM D2240) |
Tensile Strength
| 1 MPa (150 psi) (21 days) | (ASTM D412) |
Elastic Recovery
> 90 %
Movement Capability
± 25 %
Resistance to Weathering
Excellent
Service Temperature
-40 °C to +76 °C (-40 °F to +170 °F)
Adhesion in Peel
| Substrate | Peel Strength | Adhesion Loss |
| Concrete | > 30 pli | 0 % |
Tensile Stress at Specified Elongation
| 0.7 MPa at 100 % (110 psi) (21 days) | (ASTM D412) |
Application
Ambient Air Temperature
Minimum: 4 °C (40 °F) / Maximum: 38 °C (100 °F)
Substrate Temperature
Minimum: 4 °C (40 °F) / Maximum: 38 °C (100 °F)
Curing Time
Final cure: 3 to 5 days
Tack-free time
1 to 2 hours
Yield
300 mL (10.1 fl. oz) Cartridge: ~Yield in Linear Feet
| 6 mm (1/4 in) Depth | 9 mm (3/8 in) Depth | 13 mm (1/2 in) Depth | |
| Width | |||
| 6 mm (1/4 in) | 24.3 | ||
| 9 mm (3/8 in) | 16.2 | 10.8 | |
| 13 mm (1/2 in) | 12.1 | 8.1 | 6.1 |
| 19 mm (3/4 in) | 8.1 | 5.4 | 4.0 |
| 25 mm (1 in) | 3.0 | ||
| 32 mm (1-1/4 in) | 2.4 | ||
| 38 mm (1-1/2 in) | 2.0 |
858 mL (29 fl. oz) Cartridge: ~Yield in Linear Feet
| 6 mm (1/4 in) Depth | 9 mm (3/8 in) Depth | 13 mm (1/2 in) Depth | |
| Width | |||
| 6 mm (1/4 in) | 69.8 | ||
| 9 mm (3/8 in) | 46.5 | 31.0 | |
| 13 mm (1/2 in) | 34.9 | 23.3 | 17.4 |
| 19 mm (3/4 in) | 23.2 | 15.5 | 11.6 |
| 25 mm (1 in) | 8.7 | ||
| 32 mm (1-1/4 in) | 7.0 | ||
| 38 mm (1-1/2 in) | 5.8 |
SUBSTRATE QUALITY
Joint wall surfaces must be clean, structurally sound, and frost-free. Joint walls must be free of oils, grease, curing compound residues, and any other foreign matter that might prevent bond.
SUBSTRATE PREPARATION
Substrate preparation should be accomplished preferably by mechanical means. All surfaces must be clean before Sikaflex® Self Leveling Sealant application. Bond breaker tape or backer rod must be used in bottom of joint to prevent three-sided bond. Proper design is 2:1 width to depth ratio.
Note: Priming is not usually necessary. Substrates only require priming if testing indicates a need. Consult Sikaflex® Primer Product Data Sheet or Contact Sika Canada Technical Service for additional information on priming.
CLEAN UP
Uncured material can be removed from equipment and tools using Sika® Cleaning Wipes or a solvent, such as xylene. Strictly follow solvent manufacturer’s warnings and instructions for use. Cured material can only be removed manually or mechanically.
