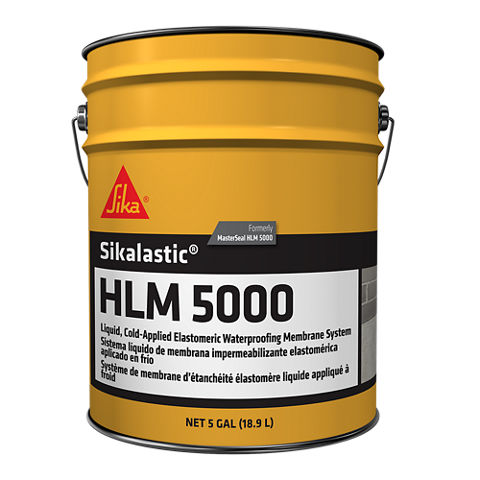

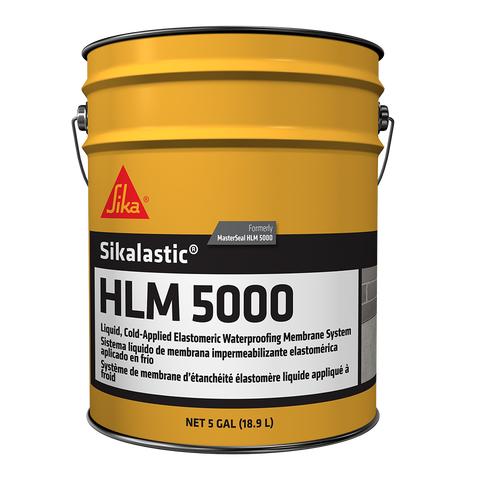

Sikalastic® HLM 5000 R

Sikalastic® HLM 5000 R

(former MSeal HLM 5000 R)

Liquid, cold-applied waterproofing membrane system

Sikalastic® HLM 5000 R is a single component, moisture curing, polyurethane-based waterproofing membrane that cures by reaction with atmospheric moisture to form a tough membrane. Sikalastic® HLM 5000 R protects structures from water penetration while remaining flexible to handle the nominal expansion and contraction of substrates.

  • Waterproof – Protects structure from water penetration
  • Elastomeric – Permits nominal expansion and contraction of the structure
  • Low temperature Flexibility – Wide service temperature, suitable for all climates
  • Single component – No complex mixing & easy to use
  • Cold-applied & seamless – Eliminates lapping, seaming and precutting
  • Available in two (2) grades – Easy application on vertical and horizontal surfaces
Product Data Sheet Show all documents

Usage

  • Waterproofing exterior concrete & plywood
  • Exterior, below grade, on concrete and masonry
  • Above grade, between two courses of concrete or masonry and cavity walls
  • Balconies, planter boxes & parking garages
  • Podiums and green roofs


Advantages

  • Waterproof – Protects structure from water penetration
  • Elastomeric – Permits nominal expansion and contraction of the structure
  • Low temperature Flexibility – Wide service temperature, suitable for all climates
  • Single component – No complex mixing & easy to use
  • Cold-applied & seamless – Eliminates lapping, seaming and precutting
  • Available in two (2) grades – Easy application on vertical and horizontal surfaces

Packaging

22.5 kg pail

Colour

Liquid / black

Product Details

Product Information

Shelf Life

6 months from date of production

Storage Conditions

Store out of direct sunlight, clear of the ground on pallets protected from rainfall.

Density

1.5 +/- 0.05

Viscosity

Self-Levelling GradeRoller Grade
5,000 cps15,000 cps
Technical Information

Tensile Strength

> 2.0 MPa

(ASTM D412)


Elongation

> 500 %(ASTM D412)

Pull-Off Strength

> 1 MPa

(ASTM C794)

Tear Strength

> 15 N/mm

(ASTM D624)

Service Temperature

Minimum-35 °C
Maximum+50 °C

Low Temperature Flexibility

-35 °C

(ASTM D1970)

Water Absorption

< 5 %

(ASTM D570)

Permeability to Water Vapour

1.5 (Perms)

(ASTM E96)

Artificial Ageing

Passes 6 mm

(ASTM C1522)

Extensibility after heat aging

Application

Application Information

Ambient Air Temperature

between +4 °C and +32 °C (40 °F and 90 °F).

Tack-free time

< 12 hours @ 23 °C

Drying time

< 24 hours @ 23 °C
Consumption

Yield

10m² per 22.5 kg pail at 1.4 mm ~1.6 mm w.f.t.
10m² per 22.5 kg pail at 1.2 mm ~ 1.4 mm d.f.t.
Application steps

SUBSTRATE PREPARATION

All concrete deck surfaces should be lightly steel troweled to a flat, uniform surface. A light broom finish is acceptable. New concrete must be properly water cured at least 14 days. Membrane curing compounds must be mechanically removed.



For extremely porous blocks: Prime with a coat of Sikalastic® HLM 5000 R diluted up to 5 % with xylene. Remove dust, dirt and other contaminants just before or during application. Surfaces must be dry at the time of application. Air-void pockmarks or honeycombs must be opened up to allow Sikalastic® HLM 5000 R to fill the cavities completely.

APPLICATION

Select the grade of Sikalastic® HLM 5000 R that best meets individual job requirements. A test application is always recommended before proceeding with entire application.


Horizontal applications:

Empty contents of pail and spread immediately to ensure workability. Best results are obtained by marking off 10 m² areas and evenly spreading the contents of 22.5 kg unit with a rubber-edged notched squeegee.



Vertical applications:

Apply by trowel/roller at a rate of 0.4 m²/kg. Verify the applied thickness with a wet film gauge as the work progresses.The integrity of the cured membrane on a horizontal surface is verified by damming the entire area and flooding with water to a depth of 50 mm and allowing the water to stand for 24 – 48 hours. Visually inspect the bottom surface to check for any water penetration. If repairs are necessary, the area should be drained and allowed to dry before reapplying Sikalastic® HLM 5000 R. After application, the area should be tested for membrane integrity

CURING TREATMENT

Appreciable properties develop within 24–48 hours at 24 °C and 50 % relative humidity. Protect Sikalastic® HLM 5000 R from traffic during curing.


Drainage and protection


For protection during backfill and where hydrostatic pressure is anticipated, use a suitable geotextile to divert the water.
For protection during backfill only, install protection board as soon as possible following cure of Sikalastic® HLM 5000 R.
