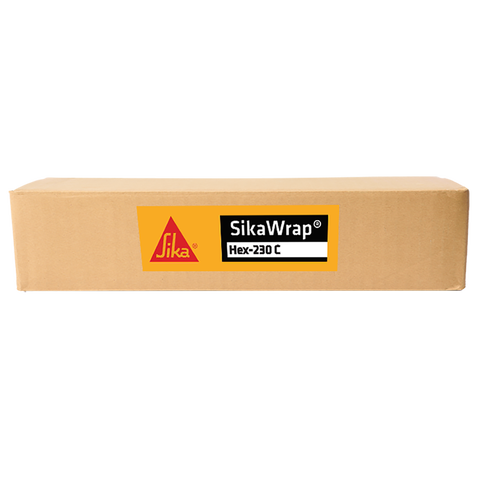

SikaWrap® Hex-230 C

Carbon fibre fabric for structural strengthening system

SikaWrap® Hex-230 C is a unidirectional carbon fibre fabric. When used in conjunction with Sikadur®-330 epoxy laminating resin, the system can provide a dry lay-up applied composite strengthening system.

  • Lightweight fabric ideal for confined spaces.
  • Dry lay-up process.
  • Use for shear, confinement or flexural strengthening.
  • Flexible, can be wrapped around complex shapes.
  • High strength.
  • Lightweight.
  • Non-corrosive and alkali resistant.
  • Low aesthetic impact.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Loading increases
  • Increasing the live loads in warehouses.
  • Increased traffic volumes on bridges.
  • Installation of heavy machinery in industrial buildings.
  • Vibrating structures.
  • Change in building use.
    Seismic strengthening
  • Column wrapping.
  • Masonry walls.
    Damage to structure parts
  • Aging of construction materials.
  • Vehicle impact.
  • Fire.
    Change in structural system
  • Removal of walls or columns.
  • Removal of slab sections for openings.
    Design or construction defects
  • Insufficient reinforcements.
  • Insufficient structural depth.


Advantages

  • Lightweight fabric ideal for confined spaces.
  • Dry lay-up process.
  • Use for shear, confinement or flexural strengthening.
  • Flexible, can be wrapped around complex shapes.
  • High strength.
  • Lightweight.
  • Non-corrosive and alkali resistant.
  • Low aesthetic impact.

Packaging

610 mm x 45.7 m (24 in x 150 ft)/roll


Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Approved by ICBO ER-5558.
  • Approved by ICC ESR-3288. (certain conditions apply, please consult Sika Canada).
  • Product recognized by the British Columbia Ministry of Transportation (BC MoT).

Product Information

Fibre Type

Colours

Black

Primary fibre direction

0° Unidirectional

Shelf Life

Unlimited

Storage Conditions

Store dry between 5 and 32 °C (41 and 89 °F).

Mass per Unit Length

228 g/m2 (6.7 oz/y2)

Dry Fibre Thickness

0.13 mm (0.005 in)

Dry Fibre Density

1.8 g/cm3 (0.065 lb/in3)
Technical Information

Laminate Tensile Strength

Cured Laminate Properties with Sikadur®-330 Epoxy
Properties after standard cure between 21 and 24 °C (70 and 75 °F)/5 days

(ASTM D3039)

Average value1

Design value2

933 MPa (1.35 x 105 psi)

801 MPa (1.16 x 105 psi)

1Average value of test series

2Average value minus 3 standard deviations

Note: 24 sample coupons per test series; all other values based on 6 coupon test series.



Tensile strength per unit width

(ASTM D7565)

Average value1

Design value2

-

3.3 kN/cm/ply 1.9 kips/in/ply

1Average value of test series

2Average value minus 3 standard deviations

Laminate Modulus of Elasticity in Tension

Cured Laminate Properties with Sikadur®-330 Epoxy
Properties after standard cure between 21 and 24 °C (70 and 75 °F)/5 days

(ASTM D3039)

Average Value1

Design Value2

-

74 700 MPa (10.83 x 106 psi)

1 Average value of test series

2Average value minus 3 standard deviations

Note: 24 sample coupons per test series; all other values based on 6 coupon test series.

Laminate Elongation at Break in Tension

Cured Laminate Properties with Sikadur®-330 Epoxy
Properties after standard cure between 21 and 24 °C (70 and 75 °F)/5 days

(ASTM D3039)

Average value1

Design value2

1.25 %

1.01 %

1Average value of test series

2Average value minus 3 standard deviations

Note: 24 sample coupons per test series; all other values based on 6 coupon test series.

Laminate Nominal Thickness

Average value1

Design value2

-

0.38 mm (0.015 in)

1Average value of test series

2 Average value minus 3 standard deviations

Tensile Stiffness

Average value1

Design value2

285 kN/cm/ply 163 kips/in/ply

1 Average value of test series

2 Average value minus 3 standard deviations

Note: 24 sample coupons per test series; all other values based on 6 coupon test series.

Application

Consumption

Consumption

First coat

0.7 - 1.2 kg/m2 (0.14 - 0.24 lb/ft2)

Inter-layer coat

0.5 kg/m2 (0.10 lb/ft2)

Sealer coat

0.5 kg/m2 (0.10 lb/ft2)
Application steps

SUBSTRATE PREPARATION

Prepare the concrete surface by sandblasting or grinding (CSP 3 - 4 as per ICRI). Remove any dust or loose particles by means of an industrial vacuum cleaner. The surface must be clean, free from grease and oil and should be dry with the maximum substrate moisture content of < 4 % by weight.


The surface to be bonded must be level, with no irregularities or protrusion > 0.5 mm (20 mil). Larger deviations must be levelled with Sikadur®-30, extended with (mix. ratio 1:1 parts by volume) oven-dried silica sand for thicknesses over 3 mm (1/8 in).
The concrete adhesive strength must be verified following surface preparation by random pull-off testing (ACI 503R) at the engineer’s discretion. Minimum tensile strength, 1.5 MPa (218 psi) with concrete substrate failure. All corners of the structure must be rounded to a radius of 12 mm (1/2 in).



Mixing

Consult Sikadur®-330 Product Data Sheet for information on epoxy resin.
