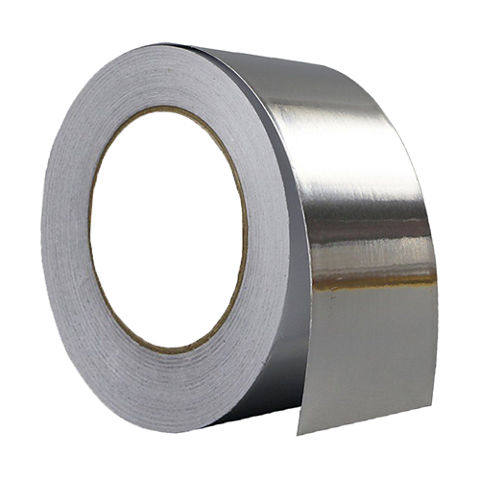

ALUMINUM FOIL FACED PRESSURE SENSITIVE TAPING

Aluminum Tape is an aluminum foil faced pressure sensitive taping, which allows for a separation barrier between contaminated materials and Sarnafil® or Sikaplan® membranes.

  • Pressure sensitive adhesive
  • Barrier between contaminated materials
  • Paper liner covers adhesive
  • Conforms to irregular surfaces
Product Data Sheet Show all documents

Usage

Separation barrier    Areas of Application
  • Pipes
  • Edge Metal
  • Seams


Advantages

  • Pressure sensitive adhesive
  • Barrier between contaminated materials
  • Paper liner covers adhesive
  • Conforms to irregular surfaces

Packaging

24 rolls per case

Colour

Grey

Product Details

Product Information

Composition / Manufacturing

A 25/50 rated aluminum foil tape with a pressure sensitive adhesive applied to one side for bonding to substrates. The adhesive is covered with a paper liner.

Shelf Life

Not applicable

Storage Conditions

Not applicable

Dimensions

Width: 51 mm (2 in)
Length: 45.7 m (150 ft)
Technical Information

Tensile Strength

403 N/100 mm (23 lb/in width)

Elongation

11 %

Service Temperature

From -29 °C to 66 °C (from -20 °F to 150 °F)



Design Considerations

Adhesion to Backing39 N/100 mm (36 oz./in width)
Adhesion to Steel    81 N/100 mm (75 oz./in width)
Adhesive                              Rubber
Backing                                .05 mm (2 mil) dead soft aluminum foil
