Sarnacol® AD Board Adhesive
Sarnacol® AD Board Adhesive is a two-component foamable polyurethane adhesive that is applied in one step and sets up in minutes.
- Low VOC
- Rapid application with appropriate dispensing tools
- Chemical cure for fast set up and dry in times
Usage
Sarnacol® AD Board Adhesive is used to bond insulations and cover boards to approved substrates and/or to intermediate insulation boards. Areas of Application Sika Approved Substrates- Concrete
- Light Weight Insulated Concrete
- Cementitious Wood Fiber
- Gypsum
- Mineral Surface Asphalt
- Aged Smooth Asphalt
- Approved Sika Vapor Retarders
- Approved Sika Base Sheets
- Polyisocyanurate Insulations
- Polystyrene Insulations
- High Density Polyisocyanurate Roof Boards
- Gypsum Cover Boards
Advantages
- Low VOC
- Rapid application with appropriate dispensing tools
- Chemical cure for fast set up and dry in times
Packaging

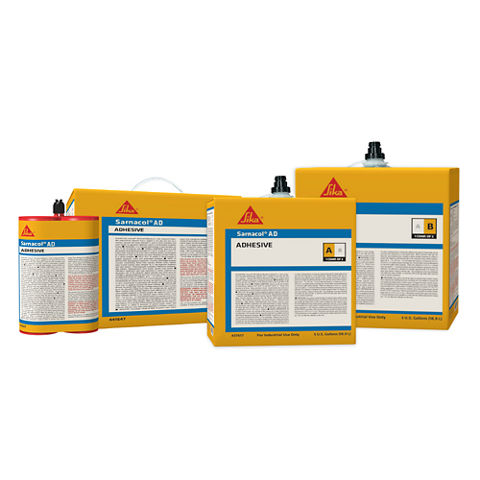

- 37.8 L (10 US gal.) box set: 18.9 L (5 US gal.) 24 kg (53 lb) of Part 1 and 18.9 L (5 US gal.) 20.4 kg (45 lb) of Part 2, 18 box sets per pallet
- 113.4 L (30 US gal.) drum set: 56.7 L (15 US gal.) 70.3 kg (155 lb) of Part 1 and 56.7 L (15 US gal.) 60.3 kg (133 lb) of Part 2, 8 drum sets per pallet
- 378.4 L (100 US gal.) drum set: 189.2 L (50 US gal.) 244.9 kg (540 lb) of Part 1 and 189.2 L (50 US gal.) 210.9 kg (465 lb) of Part 2, 2 drum set per pallet
Colour
Off White to Light Amber
Product Details
APPROVALS / CERTIFICATES
- FM Global
- Underwriters Laboratories
- Miami-Dade County
- Florida Building Code
Composition / Manufacturing
Liquid
Shelf Life
18 months if stored properly in original unopened, sealed and undamaged packaging.
Storage Conditions
Store in a dry location, not in direct sunlight, and temperatures between 7°C (45°F) and 35°C (95°F). Protect from freezing at all times. Store boxes with valve side up. When not in use keep stored containers closed. Protect from atmospheric moisture.
Volatile organic compound (VOC) content
32 g/L (Part 1 + 2 Combined)
Application
Consumption
Part 1 and Part 2 mixed through an approved low pressure pump cart will produce the following coverage rates:
18.9 L (5 US gal.) Kit: 232 -279 m2 (2,500 - 3,000 ft2)
56.7 L (15 US gal.) Kit: 697 - 869 m2 (7,500 - 9,000 ft2)
189 L (50 US gal.) Kit: 2,323 - 2,787 m2 (25,000 - 30,000 ft2)
Coverage estimates indicate total square feet of insulation attachment per kit. Rates are based on an application pattern of four 1.3 cm to 1.9 cm (½ in to ¾ in) ribbons spaced 30 cm (12 in) on center per 1.2 m x 1.2 m (4 ft x 4 ft) insulation board.
Note: A 1.3 cm - 1.9 cm (½ in - 3/4 in) wide uncured adhesive bead will produce a 5.1 cm – 7.6 cm (2 in - 3 in) wide cured adhesive bead that will rise approximately 1.9 cm - 2.5 cm (¾ in – 1 in) above the substrate. Coverage rates may be lower when used over irregular surfaces and will vary depending on roughness.
SUBSTRATE PREPARATION
All surfaces must be clean, dry, and free of dirt, grease, oil, or other contaminants or particulates. All concrete surfaces must be cured prior to applying Sarnacol® AD Board Adhesive.
APPLICATION
Apply Sarnacol® AD Board Adhesive with an approved low pressure pump cart or pump system.
Approved equipment includes:
- Millennium Cyclone low pressure pump cart
- Graco Reactor E-10
- Graco Predator
- Adhesive Systems Technology GMP-075
- Adhesive Systems Technology PCH GMP-500
Drum sets should be placed on a drum roller or agitated prior to use. Spray Part 1 and Part 2 at a 1:1 ratio.
Always ensure that the Part 1 and Part 2 containers are always hooked to the same dispensing holders or hoses (i.e. do not reverse the dispenser holders and hoses between Part 1 and Part 2). The connector colors must match.
All valves on the dispensing unit must be completely opened so a 1:1 ratio is achieved when moving the adhesive through the disposable mix tip and onto the substrate in a semi-liquid state. When starting a new set, dispense some adhesive into a waste container to achieve a proper mix.
Apply the Sarnacol® AD Board Adhesive directly to the substrate. Apply adhesive in 13 mm (½ in) to 19 mm (¾ in) wide wet beads in a ribbon pattern. Ribbon spacing will depend on the wind uplift rating required. The wet beads will quickly spread to a width of 51 mm (2 in) to 76 mm (3 in).
Allow Sarnacol® AD Board Adhesive to begin rising and place the boards into the adhesive before the adhesive has skinned over. Walk boards in, ballast if necessary to eliminate uneven surfaces and ensure positive contact between the boards, adhesive and substrate. Adhesive open time varies depending on weather conditions. Unused adhesive can be applied at a later date by simply replacing the mixing tip.
