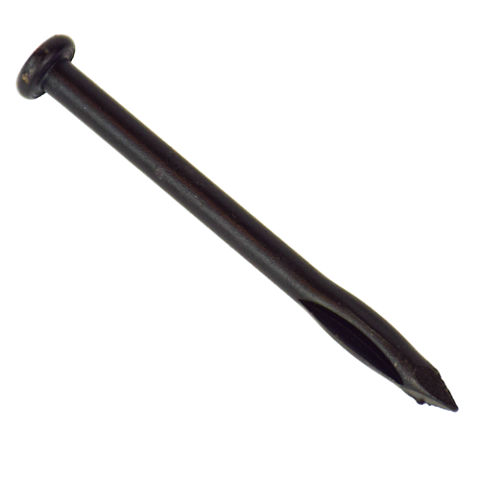

Fastener CD-10

Fastener CD-10

NON-THREADED HAMMER-IN FASTENER

Fastener CD-10 is a non-threaded hammered in fastener used to attach Sarnafil® S 327 Membrane or Sikaplan® Fastened Membrane as well as Sarnatherm® insulation, Sarnatherm roof boards, gypsum roof boards, other Sika approved boards, and Sika approved accessories into structural concrete.

  • Diamond point allows easier installation and less chance of hole damage.
  • Split bulb exerts pressure on walls of hole, producing remarkable holding power.
Product Data Sheet Show all documents

Usage

Used with various approved discs and plates for attachment direct to the concrete roof deck.   Areas of Application
  • New roof applications
  • Reroof applications
  • Recover applications

Advantages

  • Diamond point allows easier installation and less chance of hole damage.
  • Split bulb exerts pressure on walls of hole, producing remarkable holding power.

Packaging

LengthPackagingWeight

51 mm (2")

500 / Box

5.9 kg (13 lb)

64 mm (2.5")

500 / Box

7.2 kg (16 lb)

76 mm (3")

500 / Box

8.2 kg (18 lb)

89 mm (3.5")

500 / Box

9.5 kg (21 lb)

102 mm (4")

500 / Box

10.4 kg (23 lb)

114 mm (4.5")

500 / Box

11.3 kg (25 lb)

127 mm (5")

500 / Box

12.7 kg (28 lb)

140 mm (5.5")

500 / Box

14.1 kg (31 lb)

152 mm (6")

500 / Box

15.0 kg (33 lb)

178 mm (7")

500 / Box

17.2 kg (38 lb)

203 mm (8")

500 / Box

20.0 kg (44 lb)

229 mm (9")

250 / Box

11.3 kg (25 lb)

254 mm (10")

250 / Box

12.7 kg (28 lb)

279 mm (11")

250 / Box

14.1 kg (31 lb)

305 mm (12")

250 / Box

15.0 kg (33 lb)

Colour

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Factory Mutual 4470
  • Miami-Dade County
Product Information

Composition / Manufacturing

Made from carbon steel, treated with a corrosion-resistant coating to meet the criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Head Type

Flat Head, Diameter: 11 mm (0.435'')

Thread

Smooth Shank Diameter: 5.5 mm (0.215'')
