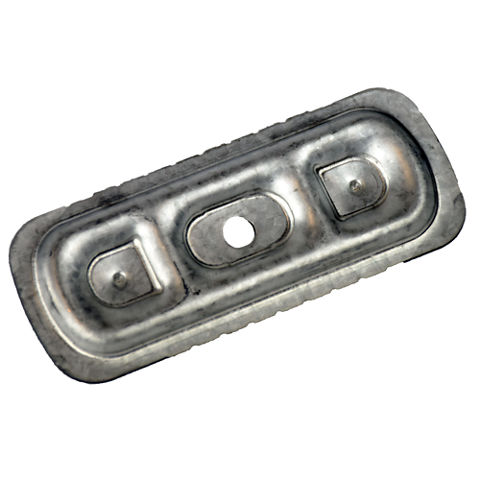

Sarnadisc XPN

Sarnadisc XPN

SPECIALLY-DESIGNED, HIGH-STRENGTH LINEAR PLATE

Sarnadisc XPN is a specially-designed, high-strength linear plate used with #14 and #15 Sarnafasteners to in-seam attach Sarnafil® S 327 roof membrane to the roof deck.

  • Unique rib design for increased strength
  • Protection provided to the membrane underside from abrasion by the fastener head
Product Data Sheet Show all documents

Usage

Used with the Sarnafasteners® when attaching Sarnafil® S 327 membrane to the roof deck.    Areas of Application
  • New roof applications
  • Reroof applications
  • Recover applications


Advantages

  • Unique rib design for increased strength
  • Protection provided to the membrane underside from abrasion by the fastener head

Packaging

500 units per pail, 19 kg (40 lb) per pail

Colour

Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County
Product Information

Composition / Manufacturing

1.2 mm (18 gauge) steel plate with a Galvalume® coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 95 mm (3.75'')
Width: 38 mm (1.5'')



Application

Application steps

APPLICATION

Sarnadisc XPN is positioned in the seam on the surface of the Sarnafil® S 327 membrane at the designated on-center spacing with a Sarnafastener placed through the center and fastened to the approved roof deck, clamping the membrane in place.
