Sarnaplate Low Profile

Sarnaplate Low Profile

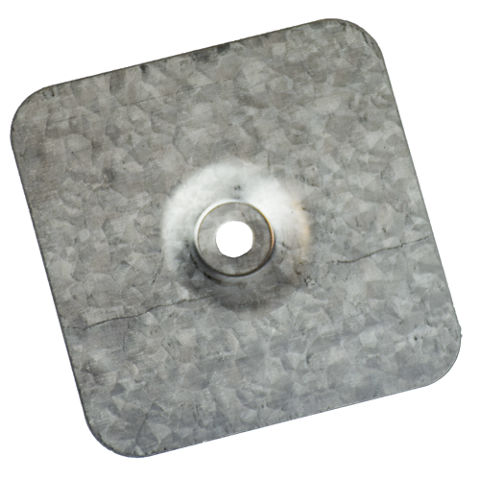

LOW-PROFILE SQUARE STRESS PLATE

Sarnaplate Low Profile is a specially-designed, low-profile stress plate used with#12, #14, and #15 Sarnafasteners to attach Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika approved boards directly to the roof deck prior to the installation of the Sarnafil® or Sikaplan® mechanically-attached or adhered roof membrane.

  • Low profile surface to minimize telegraphing through the membrane.
  • The low profile surface increases bonding around the plate.
Product Data Sheet Show all documents

Usage

Used in conjunction with Sarnafasteners to attach insulation or roof boards directly to the roof deck. Areas of Application
  • New roof applications
  • Reroof applications


Advantages

  • Low profile surface to minimize telegraphing through the membrane.
  • The low profile surface increases bonding around the plate.

Packaging

1000 per pail, 26.3 kg (58 lb) per pail

Colour

Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Miami-Dade County
Product Information

Composition / Manufacturing

0.71 mm (22 gauge) stamping of SAE 1010 steel with a Galvalume® coating

Shelf Life

Not applicable

Storage Conditions

Not applicable

Dimensions

Length: 70 mm (2.75 in)
Width: 70 mm (2.75 in)
