Sarnastop

Sarnastop

ALUMINUM ALLOY BAR

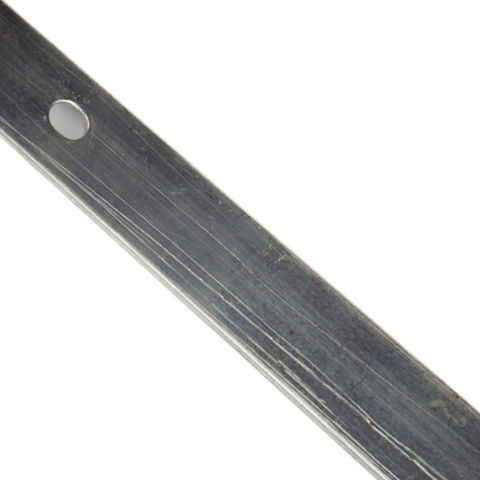

Sarnastop is an aluminum alloy bar used with approved fasteners to clamp Sarnafil® or Sikaplan® membrane to the roof deck, walls, curbs and other details.

  • Easy to install
Product Data Sheet Show all documents

Usage

Sarnastop distributes the loads uniformly across a series of fastening points, maximizing fastener pullout and backout resistance.
  Areas of Application
  • Base of walls
  • Curbs
  • Transitions

Advantages

  • Easy to install

Packaging

25 pieces per box, 680 g (1.5 lbs) per piece

Colour

Grey

Product Details

Product Information

Composition / Manufacturing

Produced from 6063 T6 extruded aluminum alloy with a mill finish. Sarnastop is provided with predrilled holes at 152 mm (6 in) o.c.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Width: 25.4 mm (1 in)

Length: 3 m (10 ft)

Thickness: 3 mm (0.13 in)



Application

Application steps

APPLICATION

Sarnastop is positioned over the top of the membrane and fastened to the substrate  with approved fasteners. Fastener spacing is determined by Sika technical requirements. The fasteners are set to a depth to clamp the membrane in place without damaging the substrate. Depending on the specific detail, a membrane coverstrip is welded over the Sarnastop for watertightness.
