Sarnatherm CG tapered

Sarnatherm CG tapered

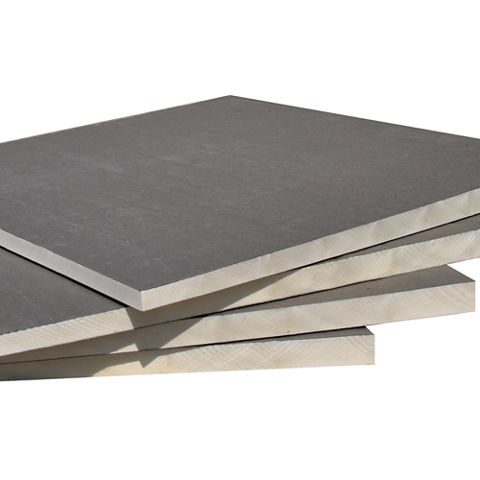

RIGID CLOSED CELL POLYISOCYANURATE INSULATION BOARD WITH COATED GLASS FACERS

Sarnatherm CG tapered is a sloped, rigid closed cell polyisocyanurate insulation board with coated glass facers, and is suitable for use in new construction and re-roofing with Sarnafil® or Sikaplan® membranes.

  • Manufactured with no CFCs or HCFCs
  • Virtually no GWP (Global Warming Potential)
  • Zero ODP (Ozone Depletion Potential)
  • Recognized as resistant to mold growth
  • Compatible with Sarnafil® and Sikaplan® membranes
  • Improved coverage rates in adhered systems
Product Data Sheet Show all documents

Usage

Wherever insulation is required within a conventional roof assembly to achieve specified thermal resistance.       AREAS OF APPLICATION
  • New Roofs
  • Recover Roofs
  • Mechanically Attached Systems
  • Adhered Systems


Advantages

  • Manufactured with no CFCs or HCFCs
  • Virtually no GWP (Global Warming Potential)
  • Zero ODP (Ozone Depletion Potential)
  • Recognized as resistant to mold growth
  • Compatible with Sarnafil® and Sikaplan® membranes
  • Improved coverage rates in adhered systems

Packaging

  • 1.2 m x 1.2 m (4 ft x 4 ft)
  • Various Thicknesses

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • ASTM C 1289 Type II, Class 2, Grade 2 (138 kPa (20 psi))
  • ASTM C 1289 Type II, Class 2, Grade 3 (172 kPa (25 psi))
  • ULC S704, Type 2, Class 3 (138 kPa (20 psi))
  • ULC S704, Type 3, Class 3 Grade 3 (172 kPa (25 psi))
  • UL 1256, 790, 263
  • ULC S126, S101, S107
  • FM 4450, 4470
  • Miami-Dade County
  • State of Florida
  • CSA-A123.21


Product Information

Composition / Manufacturing

Polyisocyanurate foam core with coated glass facers

Shelf Life

N/A

Storage Conditions

Factory-applied packaging is intended only for protection during transit. When stored outdoors or on the job site, the insulation should be stacked on pallets at least 102 mm (4") above ground level and completely covered with a weatherproof covering such as a tarpaulin. The temporary factory-applied packaging should be slit or removed to prevent accumulation of condensation. Refer to PIMA Technical Bulletin 109: Storage and Handling Recommendations for Polyiso Roof Insulation.

Thickness

ThicknessSlopeAverage LTTR Value*
12 – 25 mm (0.5 – 1.0")1% (1/8" per ft)4.3
25 – 38 mm (1.0 – 1.5")1% (1/8" per ft)7.1
38 – 50 mm (1.5 – 2.0")1% (1/8" per ft)10.0
50 – 63 mm (2.0 – 2.5")1% (1/8" per ft)12.9
12 – 38 mm (0.5 – 1.5")2% (1/4" per ft)5.7
38 – 63 mm (1.5 – 2.5")2% (1/4" per ft)11.4
12 – 63 mm (0.5 – 2.5")4% (1/2" per ft)8.6

* LTTR (long term thermal resistance) values are based on ULC-S770-09. Test samples were third‐party selected and tested by an accredited material testing laboratory. The LTTR results were reviewed by FM Global and certified by the PIMA Quality Mark Program.
Technical Information

Compressive Strength

138 kPa (20 psi)
172 kPa (25 psi)

(ASTM D-1621)

Dimensional Stability

< 2%

(ASTM D-2126)

Service Temperature

-73 °C to 121°C (-100 °F to 250 °F)

Permeability to Water Vapour

229 ng/(Pa∙s∙m2) (< 4 perm)

(ASTM E-96)

Water Absorption

< 1.5%

(ASTM C-209)

Reaction to Fire

Flame Spread: 25 – 60*

Smoke Development: 50 – 170*

(ASTM E-84)

* Numerical ratings are not intended to reflect performance under actual fire conditions. Flame spread index of ≤ 75 and smoke development ≤ 450 meet code requirements for foam plastic roof insulation. Codes exempt foam plastic insulation when used in FM 4450, UL 1256, ULC S126.

Application

Application steps

APPLICATION INSTRUCTIONS

Sarnatherm CG tapered is installed by a Sika Authorized Applicator. Sarnatherm CG tapered may be installed by mechanical-attachment to the roof deck with Sarnafasteners and Sarnaplates and/or by attachment with Sarnacol Board Adhesive depending on project requirements and specifications. Roof insulation which has become wet or damaged should be removed and replaced with solid, dry insulation. Contact Sika Canada – Roofing Technical Department regarding alternative methods of attachment.
