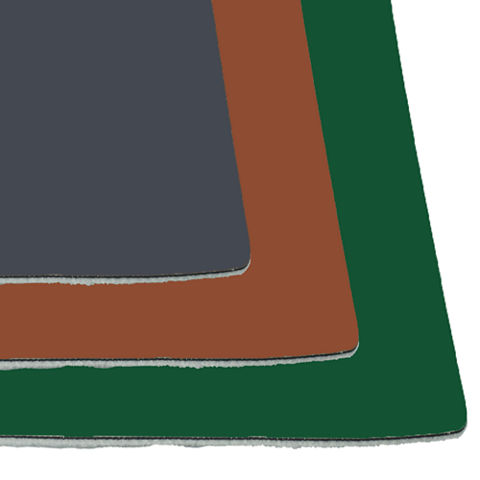

Sarnafil® G 410-60 Feltback

PVC THERMOPLASTIC ROOF MEMBRANE

Sarnafil® G 410-60 Feltback is a PVC thermoplastic feltback roof membrane produced with an integral fibreglass mat reinforcement for excellent dimensional stability, designed with heat-weldable seams, and a unique lacquer coating applied to the top of the membrane to reduce dirt pick up.

  • Excellent dimensional stability
  • Factory-applied lacquer coated to reduce dirt pick up
  • Hot-air welded seams for long-term performance
  • Proven membrane performance
  • Superior fire resistance
Product Data Sheet Show all documents

Usage

Sarnafil® G 410-60 Feltback is used in adhered applications with various adhesives over various substrates.     Areas of Application
  • New roofs
  • Reroofs
  • Flashings


Advantages

  • Excellent dimensional stability
  • Factory-applied lacquer coated to reduce dirt pick up
  • Hot-air welded seams for long-term performance
  • Proven membrane performance
  • Superior fire resistance

Packaging

1.5 mm (60 mil) Membrane
2 m x 20 m (6.56 ft x 65.6 ft) roll, 86 kg (190 lb) per roll, 10 rolls per pallet

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • FM Global
  • Underwriters Laboratories
  • Underwriters Laboratories of Canada
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County
  • Florida Building Code
  • NSF/ANSI 347: Platinum Certified
  • CGSB-37.54-95. Type 2/Class B
  • CSA-A123.21
Product Information

Composition / Manufacturing

High‐quality, PVC thermoplastic roof membrane containing ultraviolet light stabilizers, flame retardant, and fibreglass reinforcement with a unique lacquer coating on the top surface.

Reinforcing Material

Fibreglass

Shelf Life

Not applicable

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are unacceptable due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect membrane weldability.

Overall Thickness

1.5 mm (60 mil)

1.14 mm (45 mil)

(ASTM D751)

(ASTM Type II D4434 Spec. Requirement)

Thickness Above Scrim

0.69 mm (27 mil)

0.41 mm (16 mil)

(-)

(ASTM Type II D4434 Spec. Requirement)

Felt Weight

9 oz/sq yd
Technical Information

Resistance to Static Puncture

Pass

15 kg (33 lbf)

(ASTM D5602)

(ASTM Type II D4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

10 J (7.3 ft-lbf)

(ASTM D5635)

(ASTM Type II D4434 Spec. Requirement)

Tensile Strength

356 N (80 lbf/in)

245 N (55 lbf/in)

(ASTM D751)

(ASTM Type II D4434 Spec. Requirement)

Linear Dimensional Change

‐0.02 %

0.1 %

(ASTM D1204)

(ASTM Type II D4434 Spec. Requirement)

Tear Strength

78 N (17.5 lbf)

45 N (10 lbf)

(ASTM D1004)

(ASTM Type II D4434 Spec. Requirement)

Seam Strength

Pass

75 % of original2

(ASTM D751)

(ASTM Type II D4434 Spec. Requirement)

2Failure occurs through membrane rupture not seam failure.

Low Temperature Flexibility

Pass

Pass

(ASTM D2136), ‐40 °C (‐40 °F)

(ASTM Type II D4434 Spec. Requirement)

Retention of Properties after Heat Ageing

Tensile Strength, % of original

Pass

(ASTM D751)

Elongation, % of original

Pass

(ASTM D751)

Tensile Strength, % of original

90

(ASTM Type II D4434 Spec. Requirement)

Elongation, % of original90(ASTM Type II D4434 Spec. Requirement)

Resistance to UV Exposure

10 000 hours

5000 hours

(ASTM G154)

(ASTM Type II D4434 Spec. Requirement)

Cracking

(7x magnification)

None

Discoloration

(by observation)

Negligible

Crazing

(7x magnification)

None

Weight Change after Immersion in Water

1.9 %

± 3.0 %

(ASTM D570)

(ASTM Type II D4434 Spec. Requirement)



Application

Application steps

APPLICATION

Sarnafil® G 410-60 Feltback is installed after proper preparation of the approved substrate.



The membrane is unrolled into Sarnacol adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 45 kg (100 lb) steel roller. Sarnafil® G 410-60 Feltback seams are heat‐welded together by trained operators using hot‐air welding equipment. Different Sarnacol adhesives require different application methods. Consult Sika’s Specifications or Applicator Handbook for detailed installation procedures.
