Sarnafil® G 410-60 SA Textured
Sarnafil® G 410-60 SA Textured (Option 1) Roof Membrane is a PVC thermoplastic membrane with a factory applied pressure-sensitive adhesive backing and siliconized polyethylene release liner. It is produced with an integral fiberglass mat reinforcement for excellent dimensional stability, with heat-weldable seams, and a textured surface.

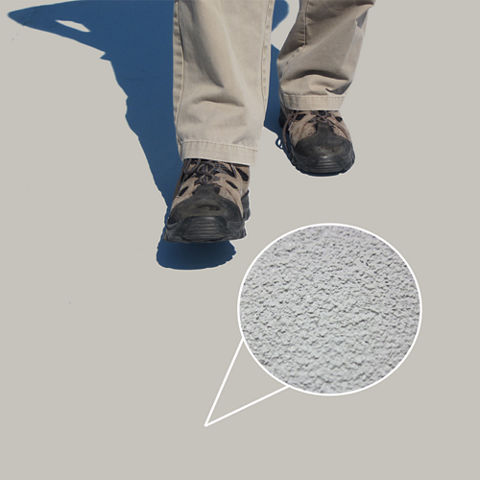

- Embossed surface
- VOC free and odor free
- Factory applied adhesive to reduce on-site installation labor and ensure uniform adhesive application
- Low temperature application limit of -7°C (20°F)
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot-air welded seams for long-term performance
- Superior fire resistance
- Proven membrane performance
Usage
Sarnafil® G 410-60 SA Textured (Option 1) is used in adhered systems for new roofs, reroofs, and recovers. AREAS OF APPLICATION Sika Approved Insulations and Cover Boards- Polyisocyanurate Insulations
- High Density Polyisocyanurate Roof Boards
- Gypsum Boards with Primed Facer
- Plywood
Advantages
- Embossed surface
- VOC free and odor free
- Factory applied adhesive to reduce on-site installation labor and ensure uniform adhesive application
- Low temperature application limit of -7°C (20°F)
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot-air welded seams for long-term performance
- Superior fire resistance
- Proven membrane performance
Packaging
1.5 mm (60 mil) Membrane
2 m x 20 m (6.56 ft x 65.6 ft) roll, 88 kg (195 lbs) per roll
10 rolls per pallet
Colour
- Top: White, Grey, and Tan
- Bottom: Grey
- Pressure Sensitive Adhesive: Clear
Product Details
APPROVALS / CERTIFICATES
- FM Global
- Underwriters Laboratories
- Underwriters Laboratories of Canada
- Miami-Dade County
- Florida Building Code
- LEED / Green Globes
- NSF/ANSI 347: Platinum Certified
- CSA-A123.21
Composition / Manufacturing
High-quality PVC membrane containing ultraviolet light stabilizers, flame retardant, fiberglass reinforcement, with a unique lacquer coating on the top surface and pressure-sensitive adhesive with a removable siliconized polyethylene release liner on the back surface.
Reinforcing Material
Fiberglass
Shelf Life
Sarnafil® G 410-60 SA Textured (Option 1) has a shelf life of up to 12 months. An extension may be offered, when properly stored between 16°C (60°F) and 27°C (80°F), and out of direct sunlight upon technical review.
Storage Conditions
Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.
Top surface
Textured
Overall Thickness
| 1.5 mm (60 mil), minimum thickness 1.43 mm (45 mil) | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Thickness Above Scrim
| Exceed 0.41 mm (16 mil) | (ASTM D-7635) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to Static Puncture
| Pass 15 kg (33 lbf) | (ASTM D-5602) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to Dynamic Puncture
| Pass 10 J (7.3 ft-lbf) | (ASTM D-5635) (ASTM Type II D-4434 Spec. Requirement) |
Tensile Strength
| 356 N (80 lbf/in) 245 N (55 lbf/in) | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Linear Dimensional Change
| -0.02% 0.1% | (ASTM D-1204) (ASTM Type II D-4434 Spec. Requirement) |
Tear Strength
| 78 N (17.5 lbf) 45 N (10 lbf) | (ASTM D-1004) (ASTM Type II D-4434 Spec. Requirement) |
Seam Strength
| Pass 75% of original2 | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
2 Failure occurs through the membrane rupture not seam failure
Low Temperature Flexibility
| Pass Pass ‐40°C (‐40°F) | (ASTM D-2136) (ASTM Type II D-4434 Spec. Requirement) |
Retention of Properties after Heat Ageing
| Tensile Strength, % of original: Pass Elongation, % of original: Pass Tensile Strength, % of original: 90 Elongation, % of original: 90 | (ASTM D-3045) (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to UV Exposure
| 10,000 hours 5,000 hours | (ASTM G-154) (ASTM Type II D-4434 Spec. Requirement) |
| Cracking (7x magnification) | None |
| Discoloration (by observation) | Negligible |
| Crazing (7x magnification) | None |
Weight Change after Immersion in Water
| Pass ± 3.0% | (ASTM D-570) (ASTM Type II D-4434 Spec. Requirement) |
Application
APPLICATION
Sarnafil® G 410-60 SA Textured (Option 1) is installed after proper preparation of the approved substrate. The membrane is unrolled and positioned in place with the selvage edge lapping the adjacent roll to allow for the 76 mm (3") side lap. Fold back half of the sheet onto itself in the long direction and carefully cut the release liner with the cutting tool provided by Sika without damaging the membrane. Peel back 76 - 127 mm (3 - 5") of the release liner and press firmly onto the substrate. Weight may be necessary on the membrane when first starting. Continue removing the release liner from the membrane in a smooth, wrinkle-free manner while maintaining the 76 mm (3") side lap. Immediately roll the membrane with a minimum 45 kg (100 lb) steel roller. Remove the remaining release liner from the other half of the membrane using the above process and immediately roll the membrane with the steel roller. Sarnafil® G 410-60 SA Textured (Option 1) side lap seams are heat-welded together by trained operators using hot-air welding equipment. End laps and all cut edges are butted together and an 203 mm (8") Sarnafil G 410 coverstrip is hot-air welded over the butt and cut edge joints.
Use Sarnafil G 410 SA, Sarnafil® G 410-60 SA Textured (Option 1), Detail Membrane, and/or Sarnafil prefabricated flashings for flashings on all Sarnafil® Textured #2 roof membrane projects. Please consult Sika’s Specification or Applicator Hand-book for detailed installation procedures.
