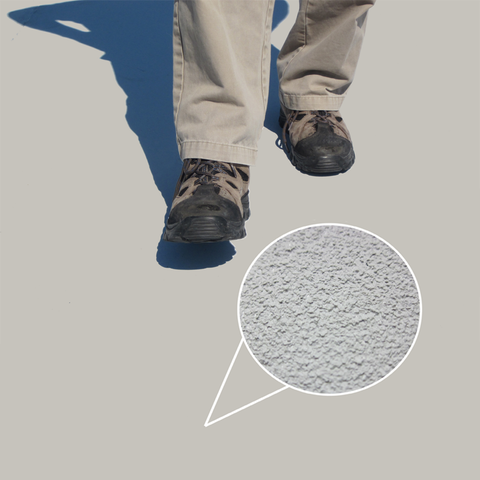

Sarnafil® G 410-72 Textured
PVC THERMOPLASTIC MEMBRANE
Sarnafil® G 410-72 Textured Roof Membrane is a PVC thermoplastic membrane produced with an integral fibreglass mat reinforcement for excellent dimensional stability, with heat-weldable seams, and a textured surface.
- Embossed surface
- Excellent dimensional stability
- Hot‐air welded seams for long‐term performance
- Superior fire resistance
- Proven membrane performance
Usage
Sarnafil® G 410-72 Textured is used in adhered applications with various adhesives, over various substrates. AREAS OF APPLICATION- New Roofs
- Reroofs
- Recovers
Advantages
- Embossed surface
- Excellent dimensional stability
- Hot‐air welded seams for long‐term performance
- Superior fire resistance
- Proven membrane performance
Packaging
72 mil (1.8 mm) Membrane*
10 ft x 100 ft (3.05 m x 30.5 m) roll, 470 lbs (214 kg) per roll,
4 rolls per pallet
5 ft x 100 ft (1.52 m x 30.5 m) roll, 235 lbs (107 kg) per roll,
9 rolls per pallet
* Made to order, minimum volume required, extended production lead times. Consult with Sika – Roofing representative for further information.
Colour
- Top: Grey
- Bottom: Dark Grey
Product Details
APPROVALS / CERTIFICATES
- FM Global
- Underwriters Laboratories
- Underwriters Laboratories of Canada
- ICC Code Compliance – ESR 1157
- Miami‐Dade County
- Florida Building Code
- LEED / Green Globes
- NSF/ANSI 347: Platinum Certified
- CSA-A123.21
Composition / Manufacturing
High quality, PVC membrane containing ultraviolet light stabilizers, flame retardant and fibreglass reinforcement
Reinforcing Material
Fibreglass
Shelf Life
N/A
Storage Conditions
Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.
Top surface
Textured
Overall Thickness
| 1.8 mm (72 mil), minimum thickness 1.5 mm (60 mil) | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Thickness Above Scrim
| Exceed 0.4 mm (16 mil) | (ASTM D-7635) (ASTM Type III D-4434 Spec. Requirement) |
Resistance to Static Puncture
| Pass 15 kg (33 lbf) | (ASTM D-5602) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to Dynamic Puncture
| Pass 10 J (7.3 ft-lbf) | (ASTM D-5635) (ASTM Type II D-4434 Spec. Requirement) |
Tensile Strength
| 445 N (100 lbf) 245 N (55 lbf) | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Linear Dimensional Change
| -0.01% 0.1% | (ASTM D-1204) (ASTM Type II D-4434 Spec. Requirement) |
Tear Strength
| 91 N (20.5 lbf) 45 N (10 lbf) | (ASTM D-1004) (ASTM Type II D-4434 Spec. Requirement) |
Seam Strength
| Pass 75% of original2 | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
2 Failure occurs through membrane rupture not seam failure
Low Temperature Flexibility
| Pass Pass -40 °C (-40 °F) | (ASTM D-2136) (ASTM Type II D-4434 Spec. Requirement) |
Retention of Properties after Heat Ageing
| Tensile Strength, % of original: Pass Elongation, % of original: Pass Tensile Strength, % of original: 90 Elongation, % of original: 90 | (ASTM D-3045) (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to UV Exposure
| 10,000 hours 5,000 hours | (ASTM G-154) (ASTM Type II D-4434 Spec. Requirement) |
| Cracking (7x magnification) | None |
| Discolouration (by observation) | Negligible |
| Crazing (7x magnification) | None |
Weight Change after Immersion in Water
| Pass + 3.0% | (ASTM D-570) (ASTM Type II D-4434 Spec. Requirement) |
Application
APPLICATION
Make sure Sarnafil® G 410-72 Textured is installed with the textured side of the membrane facing up. Sarnafil® G 410-72 Textured is installed after proper preparation of the approved substrate. The membrane is unrolled into Sarnacol® adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 45 kg (100 lb) steel roller. Sarnafil® G 410-72 Texturedseams are heat‐welded together by trained operators using hot‐air welding equipment. Different Sarnacol adhesives require different application methods. Please consult Sika’s Specifications or Applicator Handbook for detailed installation procedures.
