Sarnafil® Decor Profile (US)

PVC EXTRUDED ACCESSORY

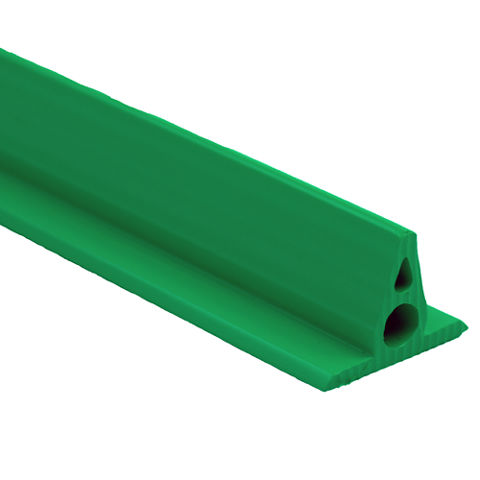

Sarnafil® Decor Profile (US) is a durable, PVC extruded accessory designed to emulate the appearance of a standing seam metal rib, with heat weldable flanges for securement onto a Sarnafil® Membrane.

  • Colour Match to Sarnafil® Membrane
  • Hot-Air Weldable
Product Data Sheet Show all documents

Usage

Standing seam metal alternative.      AREAS OF APPLICATION
  • Domed Roofs
  • Pitched Roofs
  • Flat Roofs

Advantages

  • Colour Match to Sarnafil® Membrane
  • Hot-Air Weldable

Packaging

  • 25 Decor Profiles per tube
  • 30 rigid PVC connectors per tube
  • Tube Length: 3.1 m (10' 4 in)
  • Tube Weight: 25.9 kg (57 lb)

Colour

White, Tan, Reflective Grey, Patina Green, Copper Brown, Evergreen, Lead Grey, or Custom

Product Details

Product Information

Composition / Manufacturing

The Sarnafil® Decor Profile (US) is made of the same high quality ingredients used to manufacture Sarnafil® membrane.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 3.04 m (10 in)
Height: 25 mm (1 in)
Profile Width: 13 mm (½ in)
Base Width: 35 mm (1-3/8 in)
Weight: 876 g (1.93 lb)



Application

Application steps

SUBSTRATE PREPARATION

Welding area of the Sarnafil® Membrane to receive the Decor Profile shall be clean and dry.

APPLICATION

1. Using a chalk line and removable chalk, mark out a line for laying the Sarnafil® Decor Profile (US).

2. Pre-assemble the Sarnafil® Decor Profile (US) sections, to create the required length, by inserting a provided connector into one end of a profile section then with the exposed portion of the connector into a second profile section butting the two sections together.

3. Using a hand welder, hot-air weld the ends of adjoining Sarnafil® Decor Profile (US) together.



4. Align the Sarnafil® Decor Profile (US) along the chalk line. Sarnafil® Decor Profile (US) should generally line up with edge of Sarnafil® Membrane overlap. Do not cover overlap.

5. If using the Sarnamatic® automatic welding machine with the Sarnafil® Decor Profile (US) adapter kit, position machine to start the weld. Regularly check the Sarnafil® Decor Profile (US) guide. If hand welding, a 2 x 8 in (50 x 203 mm) nailer may be needed to keep Sarnafil® Decor Profile (US) straight.

6. Hand weld the Sarnafil® Decor Profile (US) in areas where the Sarnamatic® cannot be used. If required, a piece of Sarnafil® Membrane is heat welded over the exposed end and trimmed to give a clean finish.
