HEAVY-DUTY ALUMINUM DRAIN

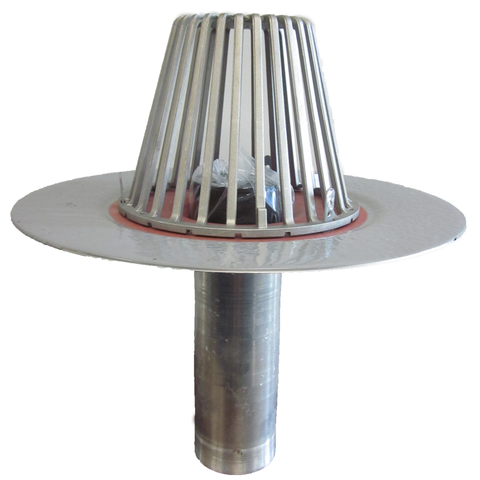

Sarnadrain with U-Flow® is a seamless heavy-duty aluminum drain, featuring a coated flange for hot air welding of Sika® Sarnafil® membranes.

  • An aluminum strainer dome provides strength and durability, while the extra-large flange, with welded metal clips for attachment of the dome, possesses a depressed sump to allow easy drainage of water from the roof surface.
  • An extended vertical drop to the drain stem and the use of an ‘easy-to-install’ U-Flow seal add flexibility and achieves watertight mechanical connections to existing PVC or cast iron pipes.
  • Sarnadrain with U-Flow® is available in a number of diameters to accommodate project requirements.
Product Data Sheet Show all documents

Usage

To allow drainage on retrofit and replacement roofing applications     Areas of Application:
  • Replacement roofs
  • Mechanically-fastened systems
  • Adhered systems


Advantages

  • An aluminum strainer dome provides strength and durability, while the extra-large flange, with welded metal clips for attachment of the dome, possesses a depressed sump to allow easy drainage of water from the roof surface.
  • An extended vertical drop to the drain stem and the use of an ‘easy-to-install’ U-Flow seal add flexibility and achieves watertight mechanical connections to existing PVC or cast iron pipes.
  • Sarnadrain with U-Flow® is available in a number of diameters to accommodate project requirements.

Packaging

  • Packaged individually in a cardboard box
  • Available in 75 mm (3 in), 100 mm (4 in), and 150 mm (6 in) diameters

Product Details

Product Information

Composition / Manufacturing

Sarnadrain with U-Flow® consists of a one-piece spun, 3.175 mm (0.125 in), 11 gauge thick aluminum body, a 445 mm (17.5 in) diameter, a 305 mm (12 in) long drain stem and a thermoplastic PVC coated flange.

Shelf Life

Not applicable

Storage Conditions

Not applicable

Dimensions

Stem Size

Outside Diameter of pre-

expanded seal

Fit into pipe

Inside Diameter

Fully expanded
75 mm (3 in)

71.5 mm (2.86 in)

72 mm (2.88 in)

85 mm (3.40 in)

100 mm (4 in)

93.5 mm (3.74 in)

94 mm (3.76 in)

110 mm (4.40 in)

150 mm (6 in)

143.75 mm
(5.75 in)

144.25 mm
(5.77 in)

160 mm (6.40 in)
