Sarnafil® G 410-60 Textured

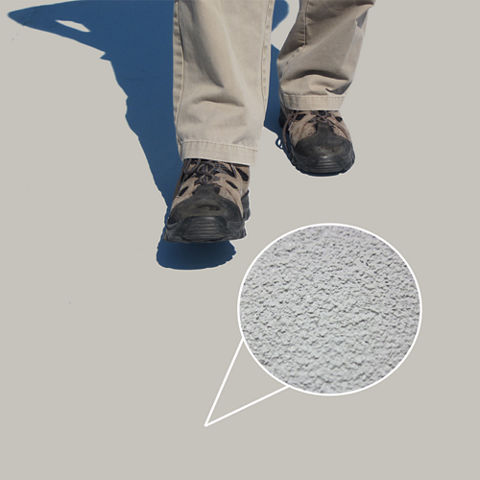

Sarnafil® G 410-60 Textured Roof Membrane is a 60 mil (1.5 mm) PVC thermoplastic membrane produced with an integral fibreglass mat reinforcement for excellent dimensional stability, with heat-weldable seams, and a textured surface.
- Embossed surface
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot-air welded seams for long-term performance
- Superior fire resistance
- Proven membrane performance
Usage
Sarnafil® G 410-60 Textured is used in adhered applications with various adhesives, over various substrates. Areas of Application- New roofs
- Reroofs
- Flashings
Advantages
- Embossed surface
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot-air welded seams for long-term performance
- Superior fire resistance
- Proven membrane performance
Packaging
1.5 mm (60 mil) Membrane
2 m x 20 m (6.56 ft x 65.6 ft) roll, 76 kg (168 lb) per roll, 19 rolls per pallet
Colour
Top: Grey
Bottom: Dark Grey
Product Details
ENVIRONMENTAL INFORMATION
- Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations
APPROVALS / CERTIFICATES
- FM Global
- Underwriters Laboratories
- ICC Code Compliance – ESR 1157
- Miami-Dade County
- Florida Building Code
- LEED / Green Globes
- NSF/ANSI 347: Platinum Certified
- CSA-A123.21
Composition / Manufacturing
High quality, PVC thermoplastic roof membrane containing ultraviolet light stabilizers, flame retardant and fibreglass reinforcement.
Reinforcing Material
Fibreglass
Shelf Life
Not applicable
Storage Conditions
Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.
Top surface
Textured
Overall Thickness
| 1.5 mm (60 mil) 1.14 mm (45 mil) | (ASTM D751) (ASTM Type II D4434 Spec. Requirement) |
Thickness Above Scrim
Exceed (-)
0.40 mm (16 mil) (ASTM Type II D4434 Spec. Requirement)
Resistance to Static Puncture
| Pass 15 kg (33 lbf) | (ASTM D5602) (ASTM Type II D4434 Spec. Requirement) |
Resistance to Dynamic Puncture
| Pass 10 J (7.3 ft-lbf) | (ASTM D5635) (ASTM Type II D4434 Spec. Requirement) |
Tensile Strength
| 356 N (80 lbf) 245 N (55 lbf) | (ASTM D751) (ASTM Type II D4434 Spec. Requirement) |
Linear Dimensional Change
| -0.02 % 0.1 % | (ASTM D1204) (ASTM Type II D4434 Spec. Requirement) |
Tear Strength
| 78 N (17.5 lbf) 45 N (10 lbf) | (ASTM D1004) (ASTM Type II D4434 Spec. Requirement) |
Seam Strength
| Pass 75 % of original2 | (ASTM D751) (ASTM Type II D4434 Spec. Requirement) |
Low Temperature Flexibility
| Pass Pass | (ASTM D2136), ‐40 °C (‐40 °F) (ASTM Type II D4434 Spec. Requirement) |
Retention of Properties after Heat Ageing
| Tensile Strength, % of original | Pass | (ASTM D751) |
| Elongation, % of original | Pass | (ASTM D751) |
| Tensile Strength, % of original | 90 | (ASTM Type II D4434 Spec. Requirement) |
| Elongation, % of original | 90 | (ASTM Type II D4434 Spec. Requirement) |
Resistance to UV Exposure
| 10 000 hours 5000 hours | (ASTM G154) (ASTM Type II D4434 Spec. Requirement) |
| Cracking (7x magnification) | None |
| Discoloration (by observation) | Negligible |
| Crazing (7x magnification) | None |
Weight Change after Immersion in Water
| Pass ± 3.0 % | (ASTM D570) (ASTM Type II D4434 Spec. Requirement) |
Application
APPLICATION
After proper preparation of the substrate, membrane is unrolled into the Sarnacol adhesive, and rolled into Sarnacol® adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 45 kg (100 lb) steel roller. Sarnafil® G 410-60 Textured seams are heat‐welded together by trained operators using hot air welding equipment. Different Sarnacol® adhesives require different application methods. Use Sarnafil® G 410-60 Textured, Sarnafil® G 410-60 Textured Reflective Grey, Detail Membrane Reflective Grey, and/or Sarnafil® Reflective Grey prefabricated flashings for flashings on all Sarnafil® Textured roof membrane projects. Please consult Sika’s Specification or Applicator Handbook for detailed installation procedures.
