King® 2-1-9
King® 2-1-9
King® 2-1-9
King® 2-1-9

King® 2-1-9

Masonry mortar for laying applications

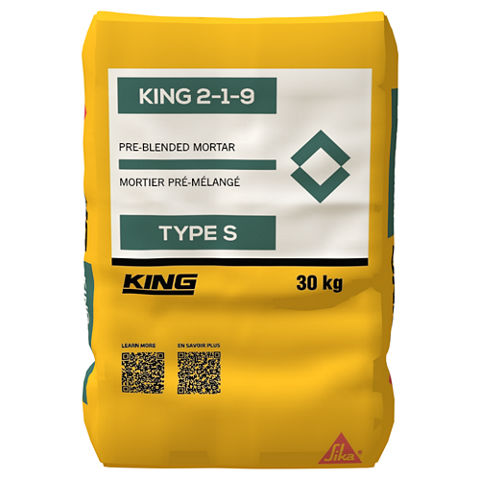

The King® 2-1-9 is a premixed, factory-bagged Type S mortar specially designed for laying bricks, natural stones, concrete blocks and other masonry products, when a higher compressive strength is required. King® 2-1-9 is formulated with Portland Cement, Type S hydrated lime, an air-entraining admixture, and masonry sand with controlled grain size.

  • Factory calibrated mix
  • High compressive strength
  • Superior adhesion
  • Superior workability
  • Good resistance to freeze-thaw cycles
  • Self-healing property
King® 2-1-9
Product Data Sheet
Show all documents

Usage

  • Laying bricks, natural stones or concrete blocks where greater compressive strength is required
  • Masonry applications where superior bond strength is required
  • Plastering work
  • Repointing work where very high compressive strength is required (Contact your Sika Technical Representative)
  • Can be used for interior and exterior applications


Advantages

  • Factory calibrated mix
  • High compressive strength
  • Superior adhesion
  • Superior workability
  • Good resistance to freeze-thaw cycles
  • Self-healing property

Packaging

30 kg (66 lb) triple-lined bags or 1500 kg (3307 lb) FIBC and polywrapped on wooden pallets.

Colour

Powder / Grey, Cream, White or custom colours

Note: May be factory-coloured or at the job site using the King® Colour-Plus Pigment System exclusive to Sika Canada. All pigments used conform to the requirements of ASTM C979 Pigments for Integrally Colored Concrete.

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

King® 2-1-9 contribute towards satisfying the following LEED®v4/v4.1 Credits:

  • MR Credit - Building Product Disclosure & Optimization: Environmental Product Declaration
  • MR Credit - Building Product Disclosure & Optimization - Material Ingredients: Manufacturer Inventory
  • MR Credit - Building Product Disclosure & Optimization - Sourcing of Raw Materials: Raw material source & extraction reporting



LEED documentation is available on Sika Canada Website

APPROVALS / CERTIFICATES

King® 2-1-9 complies with Table 6 of CSA-A179-14 for Type S mortar with addition of water in the field.
Product Information

Shelf Life

12 months in original, unopened bag

Storage Conditions

Always store in a dry area, protected from the weather. At the job site, an additional tarpaulin must be used to cover the product to prevent water infiltration.
Technical Information

Compressive Strength

ASTM C109 - Minimum



7 days

28 days

8.5 MPa

(1233 psi)

12.5 MPa

(2175 psi)



Note: The pigments used to colour the mortar have no effect on its mechanical properties.

Shrinkage

ASTM C596

0.119 % at 91 days

Water Absorption

ASTM C1506 / Water Retention

70 % Minimum

Permeability to Water Vapour

ASTM E96

15 Perms

Porosity

EN-1015-7 Method / Air Content

Maximum 18%

Freeze thaw resistance

ASTM C666M

100 cycles

Application

Application Information

Flowability

ASTM C1437 / Flow

110 % +/- 5 %

Product Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.

Ambient Air Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.

Substrate Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.
Consumption

Yield

Approx. 0.018 m3 (0.65 ft3) of fresh mortar per 30 kg (66 lb) bag
Application steps

MIXING

Small batch

Important: In order to avoid segregation issues, always mix the total content of one bag. If less than a 30 kg (66 lb) of King® 2-1-9 is required, dry mix - without water – the total content of the bag in a clean mixing container, take the required amount, and then add water to the amount withdrawn from the mixture.



Large batch

Always mix the entire content of the bag. Mix the King® 2-1-9 with a maximum of 5 L (1.3 US gal) of water per 30 kg (66 lb) bag in a clean mortar mixer. Pour 4.5 L (1.2 US gal) of water into the mixer and add 30 kg (66 lb) of King® 2-1-9. Mix for three (3) to five (5) minutes, or five (5) to ten (10) minutes when using a coloured mortar or when a colourant is added at the job site. Allow the mortar to stand for a short period of time. Using the remaining water, adjust the mortar to obtain the desired consistency.



Once the desired consistency is achieved, it is not recommended to add water to the coloured mortars in order to compensate for water loss caused by evaporation. Adding water may affect the final colour of the product.

APPLICATION

The application of the mortar must comply with the requirements of Sections 6 and 7 of CSA-A371-14.

CLEANING

In order to avoid the use of chemicals, it is always recommended to remove as much mortar splashes or stains as possible before the material hardens. Use water, a piece of burlap or wood. If the use of cleaning products is necessary, be sure to contact the manufacturer of the product to validate the compatibility and the procedure to follow. It is important to mention to the manufacturer that it is a hydrated lime-based mortar with the addition of iron and titanium oxides pigments when coloured.



Regardless of the technique or product selected, it is essential to preserve the integrity of the mortar.



Be sure to clean a test area before proceeding with the work.



Clean all tools and equipment after use with water. Once hardened, the product can only be removed mechanically.
