King® CELLFILLER E-20
Fine masonry grout for filling applications
The King® CELLFILLER E-20 is a premixed, factory-bagged grout specially designed for filling cells and other cavities when laying concrete blocks. This grout is composed of cementitious materials, masonry sand with controlled grain size and other carefully selected components.
- Factory calibrated mix
- Expands during its plastic phase
- Superior adherence
- May be poured or pumped
- Superior flow and performance characteristics
Usage
- Ideal for filling concrete blocks cores and other cavities when a controlled expansion is needed
- Can be used for interior and exterior applications
- Ideal for any application requiring a uniform flow, in addition to being expansive to compensate for shrinkage generally observed with the use of conventional grouts
Advantages
- Factory calibrated mix
- Expands during its plastic phase
- Superior adherence
- May be poured or pumped
- Superior flow and performance characteristics
Packaging

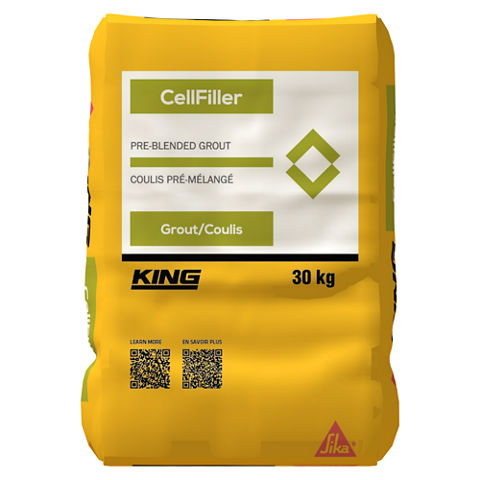

30 kg (66 lb) triple-lined bags or 1500 kg (3307 lb) FIBC and polywrapped on wooden pallets.
Colour
Powder / Grey
Product Details
ENVIRONMENTAL INFORMATION
King® CELLFILLER E-20 contribute towards satisfying the following LEED®v4/v4.1 Credits:
- MR Credit - Building Product Disclosure & Optimization: Environmental Product Declaration
- MR Credit - Building Product Disclosure & Optimization - Material Ingredients: Manufacturer Inventory
- MR Credit - Building Product Disclosure & Optimization - Sourcing of Raw Materials: Raw material source & extraction reporting
LEED documentation is available on Sika Canada Website
APPROVALS / CERTIFICATES
King® CELLFILLER E-20 complies with Table 7 of CSAA179-14 for Fine Grout with addition of water.
Shelf Life
12 months in original, unopened bag
Storage Conditions
Always store in a dry area, protected from the weather. At the job site, an additional tarpaulin must be used to cover the product to prevent water infiltration.
Density
ASTM C185 |
|
Compressive Strength
|
7 Days | 28 Days |
15 MPa (2175 psi) | 20 MPa (2900 psi) |
Expansion
Expansion in a plastic state |
< 5 % |
Bleeding
ASTM C940 / Drainage and segregation |
< 2 % |
Application
Flowability
ASTM C143 / Slump |
200 mm (8 in) to 275 mm (11 in) |
Product Temperature
Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.
Ambient Air Temperature
Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.
Substrate Temperature
Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.
Yield
Approx. 0.018 m3 (0.65 ft3) of fresh grout per 30 kg (66 lb) bag
MIXING
Mix a maximum of 4.5 L (1.2 US gal.) of water per 30 kg (66 lb) of King® CELLFILLER E-20 in a clean mortar mixer. Pour 4.0 L (1.0 US gal.) of water into the mixer and add 30 kg (66 lb) of King® CELLFILLER E-20. Mix for 5 to 10 minutes. Allow the grout to rest for a short period of time. Using the remaining water, adjust the grout to obtain the desired consistency.
APPLICATION
The placement of the grout must meet the requirements of Sections 6 and 8 of CSA-A371-14.
CLEAN UP
In order to avoid the use of chemicals, it is always recommended to clean grout projections on adjacent surfaces such as sidings, neighboring openings, metal flashings, etc. within the hour following the installation by using only clean water and a nylon brush.
Be sure to clean a test area before proceeding with the work.
Clean all tools and equipment after use with water. Once hardened, the product can only be removed mechanically.
