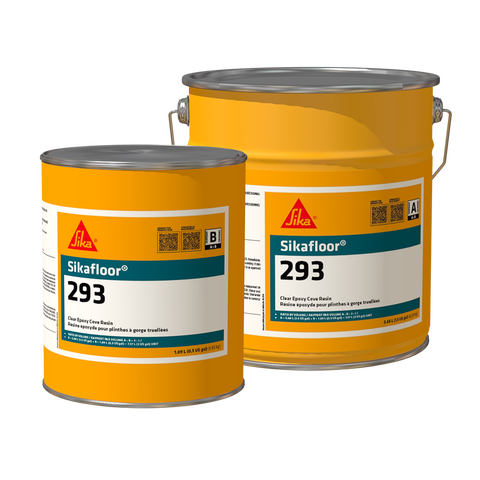

Sikafloor®-293
CLEAR EPOXY COVE RESIN
Sikafloor®-293 is a two-component, epoxy resin-based, thixotropic primer and binder specially designed for coving and other vertical applications. When mixed with Sikafloor Decorative® Quartz and Sikafloor® Aggregate PT, may be applied up to 6 mm (1/4 in) thick vertically.
- Designed specifically for trowel application on vertical surfaces
- Good mechanical resistance
- Versatile usage with other Sikafloor systems
- Excellent adhesion
Usage
Sikafloor®-293 is used where the maximum sanitation/hygiene is required. It can provide rounded and sealed corners.Advantages
- Designed specifically for trowel application on vertical surfaces
- Good mechanical resistance
- Versatile usage with other Sikafloor systems
- Excellent adhesion
Packaging
| Component A: | 5.68 L (1.5 US gal) fill in 2 gallon pail |
| Component B: | 1.89 L (0.5 US gal) fill in 1 gallon can |
| Components A+B: | 7.57 L (2 US gallon) unit |
Colour
Neutral/Clear
Product Details
Shelf Life
2 years in original unopened container under proper storage
Storage Conditions
Store dry between 4–32 °C (40–90 °F)
Volatile organic compound (VOC) content
| 21 g/L | A+B Combined |
Shore D Hardness
| 80 | ASTM D2240 at 23°C (73°F) and 50 % R.H |
Abrasion Resistance
| 2.8 g (H-22) 1000 rotations/1000 g | ASTM-D4060 at 23°C (73°F) and 50 % R.H |
Resistance to Impact
| 2.62 ft.lb | ASTM D2794 at 23°C (73°F) and 50 % R.H |
Compressive Strength
| 54 MPa (7832 Psi) | ASTM C579 at 23°C (73°F) and 50 % R.H |
Tensile Strength in Flexure
| 14.7 MPa (2132 Psi) | ASTM C580 at 23°C (73°F) and 50 % R.H |
Tensile Strength
| 14 MPa (2031 Psi) | ASTM C307 at 23°C (73°F) and 50 % R.H |
Pull-Off Strength
| >5 MPa (725 Psi) | ASTM D4541 at 23°C (73°F) and 50 % R.H |
Temperature Resistance
| Pass | ASTM C844 at 23°C (73°F) and 50 % R.H |
Coefficient of Friction
| 2.71x10-5mm/mm/°C (1.50x10-5 in/in°F) | ASTM D696 at 23°C (73°F) and 50 % R.H |
Indentation
| 0.40 % | ASTM Mil-PRF-24613 at 23°C (73°F) and 50 % R.H |
Water Absorption
| 1.2 % (24 hours boiling) | ASTM C413 at 23°C (73°F) and 50 % R.H |
Application
Mixing Ratio
3: 1 by volume plus Sikafloor-Decorative® Quartz and/ or Sikafloor® Aggregate PT at approximately 5 -7 kg/L of mixed Sikafloor®-293.
Substrate Temperature
10 °C (50 °F) min./ 35 °C (95 °F) max
Pot Life
| Material Temperature | Time |
| 10 °C (50 °F) | ~ 40 minutes |
Curing Time
| Ambient & | Foot Traffic | Light Traffic | Full cure |
| 10 °C (50 °F) | ~ 24 hours | ~ 3 days | ~ 10 days |
| 23 °C (73 °F) | ~ 8 hours | ~ 2 days | ~ 7 days |
| 35 °C (96 °F) | ~ 3 hours | ~ 1 days | ~ 4 days |
Waiting Time / Overcoating
| Ambient & Substrate Temperature | Time Minimum |
| 10 °C (50 °F) | ~ 20 hours |
| 23 °C (73 °F) | ~ 5 hours |
| 35 °C (95 °F) | ~ 2 hours |
Consumption
As a primer, applied at 4 - 6 wet mil vertically. For cove application, applied at approximately 4 lin.m/L (50 lin. ft. /US gal) with specified aggregates at 3mm (1/8") thick at 100 mm (4") high. Coverage rates are calculated based on material needed for finishing of smooth surfaces.
MIXING
Mixing Ratio: 3: 1 by volume plus approximately 5-7 kg of the aforementioned Sikafloor-Decorative® Quartz and Sikafloor® Aggregate PT per 1 L of mixed Sikafloor®-293.
Mix the combined components for at least three (3) minutes using a low speed drill (300–450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Be careful not to introduce any air bubbles while mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the coating. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge trowel at least once to ensure complete mixing.
Transfer the mixed binder (components A+B) into a suitable mechanical mixer. Gradually add specified aggregates aggregates (component C) to the binder. Once all ingredients are combined, mix continuously and thoroughly for two (2) to four (4) minutes to ensure complete mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the mortar. Immediately transfer the materials onto the floor where the cove is to be installed.
Do not mix more material than can be applied within the working time limits (i.e. Pot Life) at the actual field temperature.
APPLICATION
The use of a low level light along the floor/wall intersection will show shadows and aide in reducing trowel marks or ridges. After thoroughly mixing, immediately deliver material along the floor/wall. Apply the material by striking it up the wall with a steel trowel or margin trowel, ensure the thickness is consistent. Keep the trowel clean by wiping with a rag dampened with solvent. The solvent will act as a lubricant to assist in troweling, do not use water. Finish with a cove trowel.
