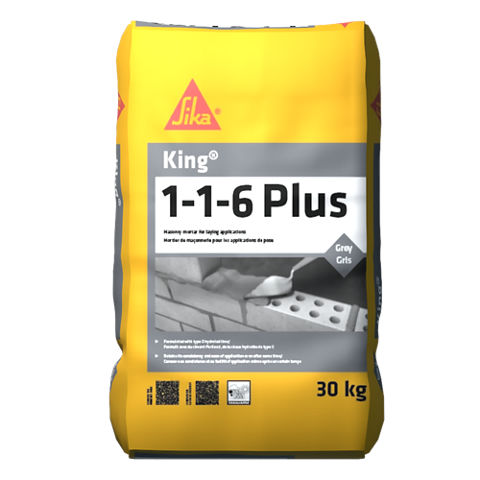

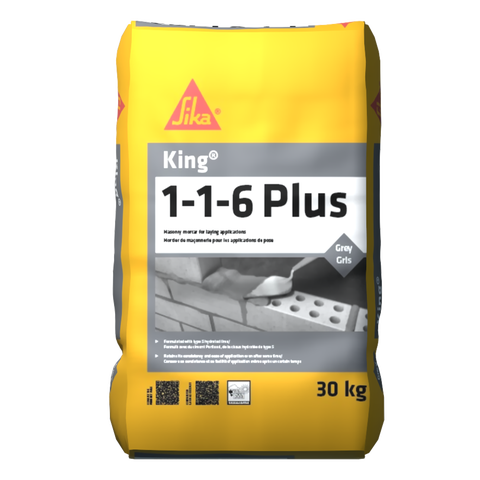

King® 1-1-6 Plus

Masonry mortar for laying applications

The King® 1-1-6 Plus  is a premixed, factory-bagged mortar specially designed for laying bricks, natural stone, concrete blocks and other masonry products.      It is formulated with Portland cement, type S hydrated-lime, an air-entraining admixture and masonry sand with controlled grain size. King® 1-1-6 Plus retains its consistency and ease of application, even after some time, without the addition of water and/or re-mixing.

  • Finer texture that of King® 1-1-6
  • Increased ease of finishing mortar joint
  • Factory-calibrated mix
  • Superior adhesion
  • High vapour transmission properties
  • Increases waterproofing capacity of the masonry wall
  • Good resistance to freeze-thaw cycles
  • Self-healing properties
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Laying clay brick, natural stone or concrete blocks
  • Can be used for interior and exterior applications
  • Parging
  • Any other masonry application where high bond strength is required
  • Repointing of modern buildings (contact your Sika Technical Representative)


Advantages

  • Finer texture that of King® 1-1-6
  • Increased ease of finishing mortar joint
  • Factory-calibrated mix
  • Superior adhesion
  • High vapour transmission properties
  • Increases waterproofing capacity of the masonry wall
  • Good resistance to freeze-thaw cycles
  • Self-healing properties

Packaging

30 kg (66 lb) triple-lined bag

Colour

Powder / Grey



Note:  King® 1-1-6 Plus may be coloured at the job site using the King® ColourPlus Pigment System exclusive to Sika Canada.  All pigments used conform to the requirements of ASTM C979 Pigments for Integrally Colored Concrete.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

King® 1-1-6 Plus complies with Table 6 of CSA A179 for Type N mortar with addition of water in the field.
Product Information

Shelf Life

12 months in original, unopened bag

Storage Conditions

Always store in a dry area, protected from the weather. At the job site, an additional tarpaulin must be used to cover the product to prevent water infiltration.
Technical Information

Compressive Strength

ASTM C109 - Minimum



7 days

28 days

3.5 MPa

(508 psi)

6.5 MPa

 (943 psi)



Note: The pigments used to colour the mortar have no effect on the mechanical properties of the mortar.

Shrinkage

ASTM C596

0.149 % at 91 days

Freeze thaw resistance

ASTM C666M

50 cycles

Water Absorption

ASTM C1506 / Water Retention

Minimum 70 %

Porosity

EN-1015-7 Method / Air Content

Maximum 18 %

Application

Application Information

Product Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.

Ambient Air Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.

Substrate Temperature

Refer to the "Placement condition" section on the Specifications template document on Sika Canada Website.

Flowability

ASTM C1437 / Flow

110 % +/- 5 %

Consumption

Yield

Approx. 0.018 m3 (0.65 ft3) of fresh mortar per bag of 30 kg (66 lb)
Application steps

MIXING

For small mortar batches

Important: In order to avoid segregation issues, always mix the total content of one bag. If less than a 30 kg (66 lb) of King® 1-1-6 Plus is required, dry mix - without water – the entire content of a bag in a clean container, take the required amount, and then add water to the amount withdrawn from the mixture.



For large mortar batches

Always mix the entire contents of the bag. Mix the King® 1-1-6 Plus with a maximum of 5.2 L (1.32 US gal.) of water per 30 kg (66 lb) bag in a clean mortar mixer. Pour 4.7 L (1.25 US gal.) of water into the mixer and add 30 kg (66 lb) of King® 1-1-6 Plus. Mix for three (3) to five (5) minutes, or five (5) to ten (10) minutes when a colourant is added at the job site. Allow the mortar to stand for a short period of time. Using the remaining water, adjust the mortar to obtain the desired consistency.



Once the desired consistency is achieved, it is not recommended to add water to the coloured mortars in order to compensate for water loss caused by evaporation. Adding water may affect the final colour of the product.

APPLICATION

The application of the mortar must comply with the requirements of Sections 6 and 7 of CSA A371.



CLEANING

In order to avoid the use of chemicals, it is always advisable to remove as many mortar splashes or stains as possible before the material hardens. Uses water, a piece of burlap or wood. If the use of cleaning products is necessary, be sure to contact the manufacturer of the product to validate the compatibility and the procedure to follow. It is important to mention to the manufacturer that this is a hydrated lime-based mortar to which iron oxide and titanium pigments are added for colouring purposes. Regardless of the technique or product selected, it is essential to preserve the integrity of the mortar. Be sure to clean a test area before proceeding with the work.



Clean all tools and equipment after use with water. Once hardened, the product can only be removed mechanically.
